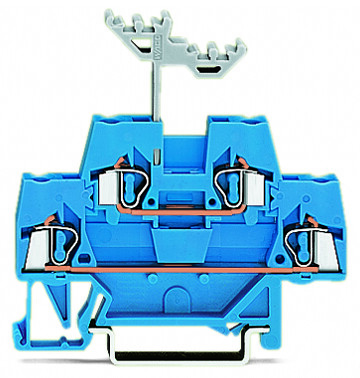

WAGO 280-529 Double-Deck Terminal Block, 2-Pole, 20A, 500V, 28-12 AWG, CAGE CLAMP®, Blue
Wago
$6.67
Double-deck terminal block; Through/through terminal block; suitable for Ex i applications; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP; 2,50 mm²; blue/blue.
The WAGO 280 series neutral-through terminal block is a double-deck terminal block with a center marking slot, suitable for Ex I applications. It features two neutral-through poles, each with two clamps, accommodating wire sizes from 0.08mm² to 2.5mm² or #28AWG to #12AWG, and is rated for a current of 20A. The terminal block uses CAGE CLAMP spring connections and is designed for mounting on a DIN-35 rail with dimensions of 35 x 15 or 35 x 7.5 mm, with a width of 5mm. It is equivalent to model 280529 and comes in blue.
- actuation type:
- Operating tool
- connectable conductor materials note:
- Terminating Aluminum ConductorsWAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO Alu-Plus Contact Paste is used for termination.Alu-Plus Contact Paste Advantages:Automatically
- color:
- Blue/blue
- connectable conductor materials:
- Copper || Aluminum
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- CN
- depth from upper edge of din rail:
- 58.5 mm / 2.303 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fire load:
- 0.110 MJ
- flammability class per ul94:
- V0
- height:
- 64 mm / 2.52 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 500 V
- note conductor cross section:
- 12 AWG: THHN, THWN
- packaging type:
- Box
- rated current:
- 20 A
- rated surge voltage iii 3:
- 6 kV
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 10.061 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
