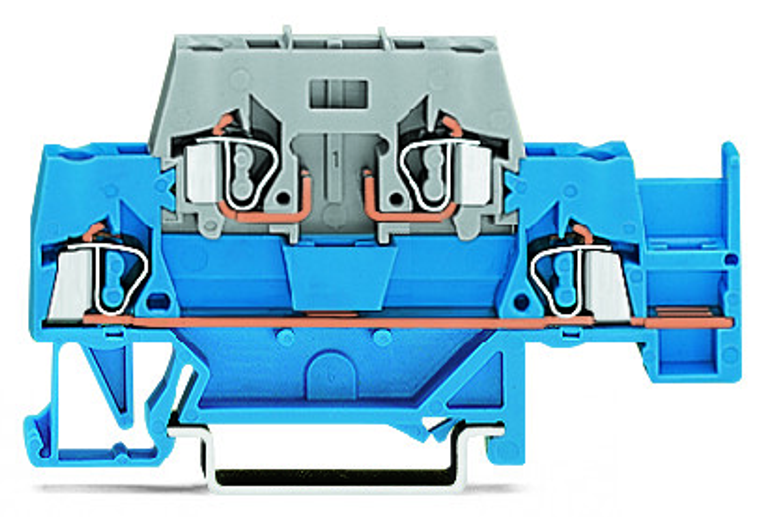

WAGO 280-532 double-deck terminal block with additional jumper position, suitable for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm², CAGE CLAMP®, blue/gray
Wago
$9.00
Double-deck terminal block; with additional jumper position on lower level; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP; 2,50 mm²; blue/gray.
The WAGO 280 series terminal block is a double-deck feed-through and neutral-through terminal block with pluggable disconnect and an additional jumper position on the lower level. It features a blue and gray design, accommodating 1 feed-through pole and 1 neutral-through pole, with 2 clamps per pole, suitable for wire sizes ranging from 0.08mm² to 2.5mm² or #28AWG to #12AWG. It supports a rated current of 10A or 20A and utilizes CAGE CLAMP spring connections. The terminal block is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 5mm, equivalent to model 280532.
- actuation type:
- Operating tool
- connectable conductor materials note:
- Terminating Aluminum ConductorsWAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO Alu-Plus Contact Paste is used for termination.Alu-Plus Contact Paste Advantages:Automatically
- color:
- Blue/gray
- connectable conductor materials:
- Copper || Aluminum
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- CN
- depth from upper edge of din rail:
- 39.5 mm / 1.555 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fire load:
- 0.156 MJ
- flammability class per ul94:
- V0
- height:
- 74 mm / 2.913 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Without marking level
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 400 V
- note conductor cross section:
- 12 AWG: THHN, THWN
- packaging type:
- Box
- rated current:
- 0.416666666666667
- rated current 2:
- 20 A
- rated surge voltage iii 3:
- 6 kV
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 9.680 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
