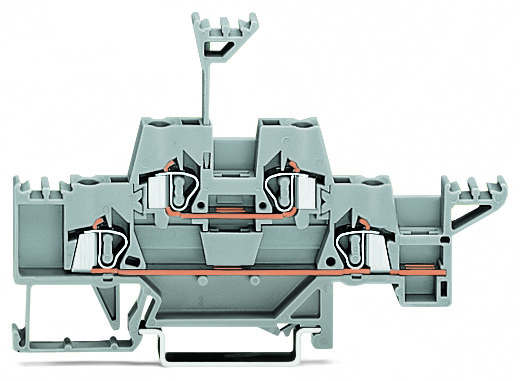

WAGO 280-543 Double-Deck Terminal Block, 2.5 mm², CAGE CLAMP®, Gray
Wago
$6.90
Double-deck terminal block; Through/through terminal block; with additional jumper position on lower level; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm; CAGE CLAMPp>
- Automatically destroys the oxide film during clamping.
- Prevents fresh oxidation at the clamping point.
- Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).
- Provides long-term protection against corrosion.
The WAGO 280 series feed-through terminal block is a double-deck unit with additional jumper positions on the lower level and extra side and center marking slots. It features two feed-through poles accommodating four wires with two clamps each, suitable for wire sizes ranging from 0.08mm² to 2.5mm² or #28AWG to #12AWG. Rated for a current of 20A, it utilizes CAGE CLAMP spring connections and mounts on a DIN-35 rail with dimensions of 35 x 15 or 35 x 7.5, and has a width of 5mm. This model is equivalent to the 280543.
- actuation type:
- Operating tool
- connectable conductor materials note:
- Terminating Aluminum ConductorsWAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO Alu-Plus Contact Paste is used for termination.Alu-Plus Contact Paste Advantages:Automatically
- color:
- Gray/gray
- connectable conductor materials:
- Copper || Aluminum
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- CN
- depth from upper edge of din rail:
- 58.5 mm / 2.303 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fire load:
- 0.140 MJ
- flammability class per ul94:
- V0
- height:
- 95 mm / 3.74 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 500 V
- note conductor cross section:
- 12 AWG: THHN, THWN
- packaging type:
- Box
- rated current:
- 20 A
- rated surge voltage iii 3:
- 6 kV
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 11.400 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
