Wago

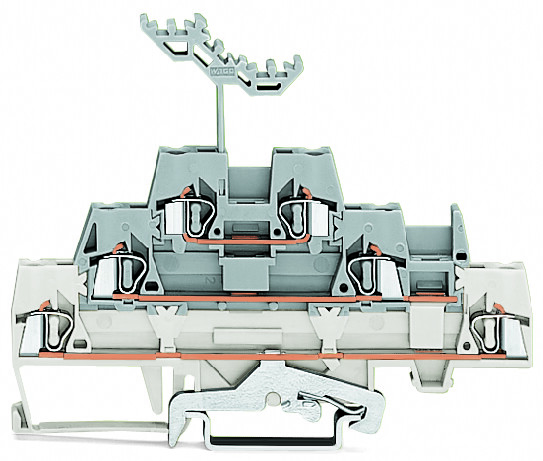

WAGO 280-548

SKU:

280-548

UPC:

MPN:

280-548

Condition:

New

actuation type:

Operating tool

connectable conductor materials note:

Terminating Aluminum ConductorsWAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO Alu-Plus Contact Paste is used for termination.Alu-Plus Contact Paste Advantages:Automatically

color:

White/gray/gray

connectable conductor materials:

Copper || Aluminum

connection technology:

CAGE CLAMP

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

76.5 mm / 3.012 inch

design:

Horizontal type

fine stranded conductor:

0.08 2.5 mm / 28 12 AWG

fire load:

0.226 MJ

flammability class per ul94:

V0

height:

103 mm / 4.055 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

marking level:

Center marking

mounting type:

DIN-35 rail

nominal voltage iii 3:

500 V

note conductor cross section:

12 AWG: THHN, THWN

packaging type:

Box

rated current:

20 A

rated surge voltage iii 3:

6 kV

ratings per:

IEC/EN 60947-7-1

solid conductor:

0.08 2.5 mm / 28 12 AWG

strip length:

8 9 mm / 0.31 0.35 inch

weight:

21.754 g

width:

5 mm / 0.197 inch

wiring direction:

Front-entry wiring
