Triple-deck terminal block; Shield/through/through terminal block; 2.5 mm²; with marker carrier; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 2,50 mm²; white/blue/gray.

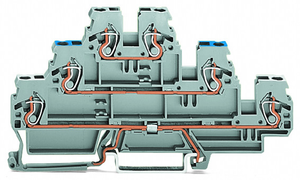

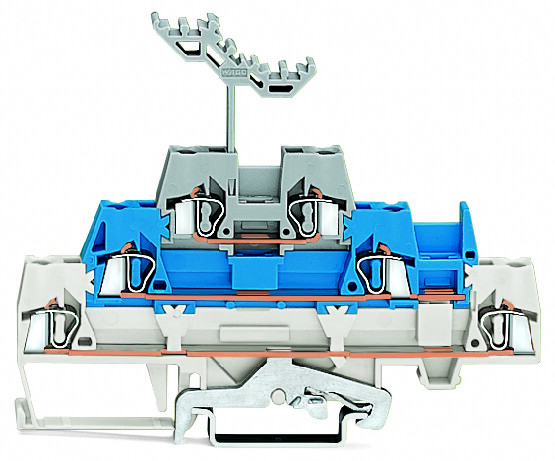

The WAGO 280 series terminal block is a triple-deck feed-through, neutral-through, and shield terminal block with a center marking slot, available in white, blue, and gray. It features one feed-through pole, neutral-through, and shield-through (1P+N+S) with six wire connections (3 clamps + 3 clamps) suitable for wire sizes ranging from 0.08mm² to 2.5mm² (#28AWG to #12AWG). It supports a rated current of 20A and utilizes CAGE CLAMP spring connections for secure wiring. The terminal block is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 5mm, equivalent to model 280558.
- actuation type:
- Operating tool
- connectable conductor materials note:
- Terminating Aluminum ConductorsWAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO Alu-Plus Contact Paste is used for termination.Alu-Plus Contact Paste Advantages:Automatically
- color:
- White/blue/gray
- connectable conductor materials:
- Copper || Aluminum
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 76.5 mm / 3.012 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fire load:
- 0.231 MJ
- flammability class per ul94:
- V0
- height:
- 103 mm / 4.055 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 500 V
- note conductor cross section:
- 12 AWG: THHN, THWN
- packaging type:
- Box
- rated current:
- 20 A
- rated surge voltage iii 3:
- 6 kV
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 21.724 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
