Wago

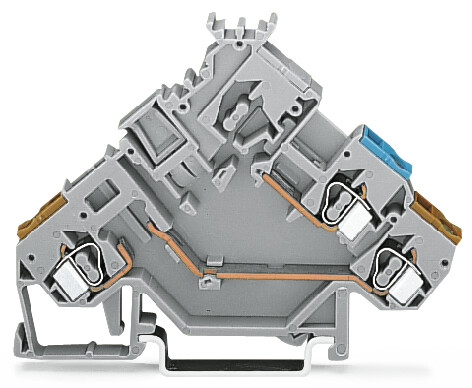

WAGO 280-565

SKU:

280-565

UPC:

MPN:

280-565

Condition:

New

actuation type:

Operating tool

connectable conductor materials note:

Terminating Aluminum ConductorsWAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO Alu-Plus Contact Paste is used for termination.Alu-Plus Contact Paste Advantages:Automatically

color:

Gray

connectable conductor materials:

Copper || Aluminum

connection technology:

CAGE CLAMP

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

55.5 mm / 2.185 inch

design:

Angled

fine stranded conductor:

0.08 2.5 mm / 28 12 AWG

fire load:

0.189 MJ

flammability class per ul94:

V0

height:

80 mm / 3.15 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

marking level:

Center marking

mounting type:

DIN-35 rail

nominal voltage iii 3:

125 V

note conductor cross section:

12 AWG: THHN, THWN

packaging type:

Box

rated current:

0.208333333333333

rated current 2:

6.3 A

rated voltage iii 3 2:

250 V

ratings note:

Electrical ratings are given by the fuse plug or empty component plug housing.

solid conductor:

0.08 2.5 mm / 28 12 AWG

strip length:

8 9 mm / 0.31 0.35 inch

weight:

9.814 g

width:

5 mm / 0.197 inch

wiring direction:

Front-entry wiring
