Wago

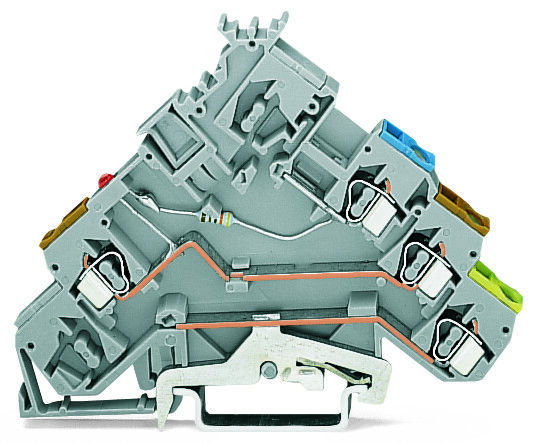

WAGO 280-572/281-434

SKU:

280-572/281-434

UPC:

MPN:

280-572/281-434

Condition:

New

actuation type:

Operating tool

connectable conductor materials note:

Terminating Aluminum ConductorsWAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO Alu-Plus Contact Paste is used for termination.Alu-Plus Contact Paste Advantages:Automatically

color:

Gray

connectable conductor materials:

Copper || Aluminum

connection technology:

CAGE CLAMP

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

63.5 mm / 2.5 inch

design:

Angled

fine stranded conductor:

0.08 2.5 mm / 28 12 AWG

fire load:

0.226 MJ

flammability class per ul94:

V0

height:

90.5 mm / 3.563 inch

insulation material:

Polyamide (PA66)

marking level:

Center marking

mounting type:

DIN-35 rail

note conductor cross section:

12 AWG: THHN, THWN

note on rated current 1:

LED power consumption: 4.8 mA

packaging type:

Box

rated current:

20 A

solid conductor:

0.08 2.5 mm / 28 12 AWG

strip length:

8 9 mm / 0.31 0.35 inch

weight:

18.100 g

width:

5 mm / 0.197 inch

wiring direction:

Front-entry wiring
