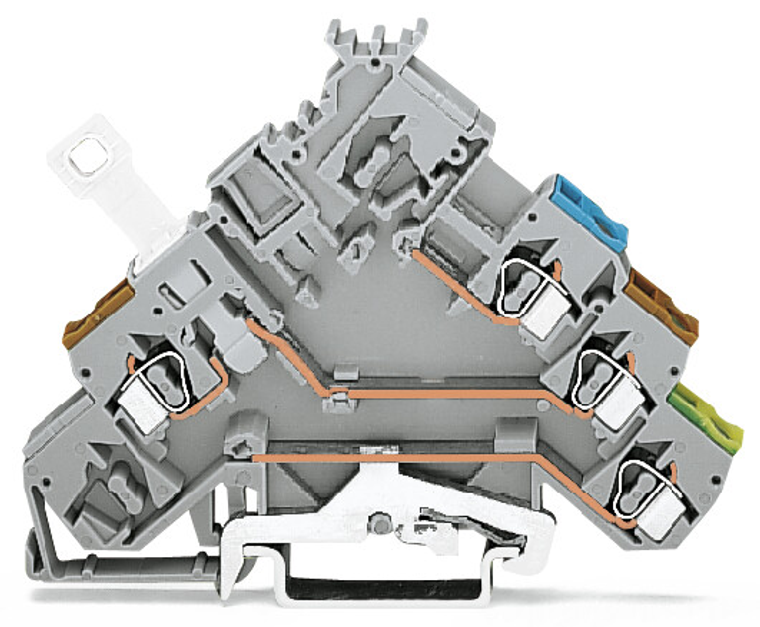

3-conductor actuator supply terminal block; with colored conductor entries; 2.5 mm; CAGE CLAMP.
The WAGO 280 series quadruple-deck terminal block is a gray, 4-deck terminal block with tab disconnect, ground contact, and center marking slot, designed for 3-conductors/4-wires (4 clamps) ranging from 0.08mm² to 2.5mm² or #28AWG to #12AWG. It supports a rated current of 10A and features CAGE CLAMP spring connections for secure wiring. The terminal block is mounted on a DIN-35 rail and has a width of 5mm, equivalent to model 280576.
- actuation type:
- Operating tool
- connectable conductor materials note:
- Terminating Aluminum ConductorsWAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO Alu-Plus Contact Paste is used for termination.Alu-Plus Contact Paste Advantages:Automatically
- color:
- Gray
- connectable conductor materials:
- Copper || Aluminum
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 63.5 mm / 2.5 inch
- design:
- Angled
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fire load:
- 0.244 MJ
- flammability class per ul94:
- V0
- height:
- 90.5 mm / 3.563 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 400 V
- note conductor cross section:
- 12 AWG: THHN, THWN
- packaging type:
- Box
- rated current:
- 0.416666666666667
- rated surge voltage iii 3:
- 6 kV
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 18.003 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
