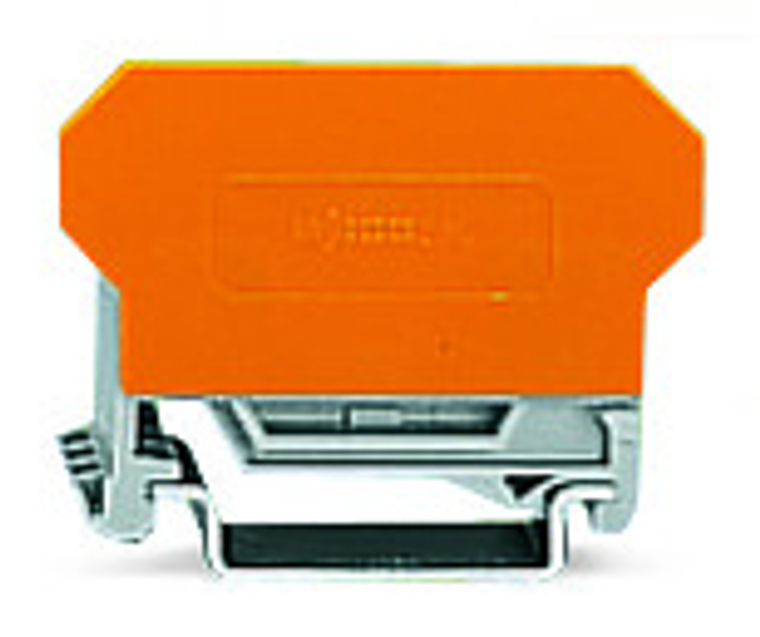

WAGO 280-619 Terminal Block for Pluggable Modules, 6-Pole, 2.5 mm², CAGE CLAMP®, Gray
Wago
$14.77
Terminal block for pluggable modules; 6-pole; with 2-conductor terminal blocks; with orange separator; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP; 2,50 mm²; gray.
The WAGO 280 series feed-through terminal block is a gray, 1-deck/level unit with a pluggable disconnect and built-in orange separator, closed on both sides. It features 6 feed-through poles and accommodates 2 wires per pole using CAGE CLAMP spring connections, suitable for wire sizes ranging from 0.08mm² to 2.5mm² or #28AWG to #14AWG. Rated for a current of 10A, it mounts on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 17mm. This terminal block is equivalent to model 280619.
- color:
- Gray
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 28 mm / 1.102 inch
- fine stranded conductor:
- 0.08 2.5 mm / 28 14 AWG
- fire load:
- 0.338 MJ
- height:
- 50 mm / 1.969 inch
- mounting type:
- DIN-35 rail
- number of connection types:
- 2
- packaging type:
- Box
- pollution degree:
- 3
- rated continuous current:
- 0.416666666666667
- rated surge voltage:
- 6 kV
- rated voltage:
- 400 V
- solid conductor:
- 0.08 2.5 mm / 28 14 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- total number of potentials:
- 2
- weight:
- 16.139 g
- width:
- 17 mm / 0.669 inch
- wiring direction:
- Front-entry wiring
