Wago

WAGO 280-673/281-411

(No reviews yet) Write a Review
SKU:
280-673/281-411
MPN:
280-673/281-411
Condition:
New
actuation type:
Operating tool
connectable conductor materials note:
Terminating Aluminum ConductorsWAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO Alu-Plus Contact Paste is used for termination.Alu-Plus Contact Paste Advantages:Automatically
color:
Gray
connectable conductor materials:
Copper || Aluminum
connection technology:
CAGE CLAMP
country of origin sales organisation germany:
CN
depth from upper edge of din rail:
28 mm / 1.102 inch
design:
Horizontal type
fine stranded conductor:
0.08 2.5 mm / 28 14 AWG
fire load:
0.141 MJ
flammability class per ul94:
V0
height:
64 mm / 2.52 inch
insulation material:
Polyamide (PA66)
marking level:
Center marking
mounting type:
DIN-35 rail
packaging type:
Box
rated current:
0.5 A
ratings per:
IEC/EN 60947-7-1
solid conductor:
0.08 2.5 mm / 28 14 AWG
strip length:
8 9 mm / 0.31 0.35 inch
weight:
7.849 g
width:
5 mm / 0.197 inch
wiring direction:
Front-entry wiring
  • Wago 280-673/281-411
  • Wago 280-673/281-411
  • Wago 280-673/281-411
$9.71

Description

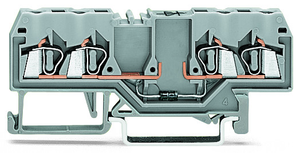

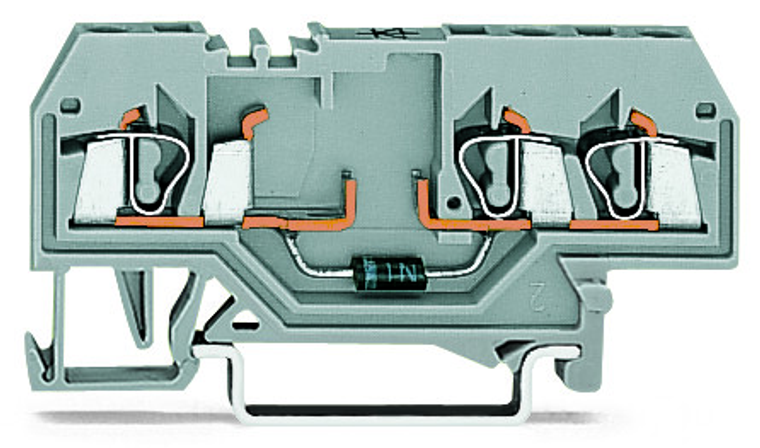

Component terminal block; 3-conductor; with diode 1N4007; anode, right side; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP; 2,50 mm²; gray.

The WAGO 280 series component feed-through terminal block is a single-deck unit featuring a diode (1N4007) with the anode on the right side and a center marking slot. It is gray in color and designed for one feed-through pole with three wire connections (one clamp and two clamps). It supports wire sizes from 0.08mm² to 2.5mm² or #28AWG to #14AWG and has a rated current of 0.5A. The terminal block uses CAGE CLAMP spring connections and is mounted on a DIN-35 rail (35 x 15 / 35 x 7.5) with a width of 5mm, equivalent to model 280673281411.
