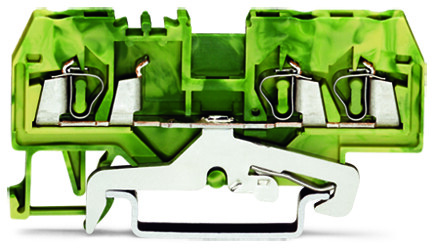

3-conductor ground terminal block; 2.5 mm; suitable for Ex e II applications; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP.
The WAGO 280 series ground/earthing terminal block is a green-yellow, 1-deck/level component with a center marking slot, suitable for Ex e II applications. It features one grounding/protective-earth (1PE) connection and accommodates three wires using one clamp and two clamps (1+2). It supports wire sizes from 0.08mm² to 2.5mm² or #28AWG to #12AWG and utilizes CAGE CLAMP spring connections. The terminal block is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) with a 5mm width and is equivalent to model number 280687999950.
- actuation type:
- Operating tool
- connectable conductor materials note:
- Terminating Aluminum ConductorsWAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO Alu-Plus Contact Paste is used for termination.Alu-Plus Contact Paste Advantages:Automatically
- color:
- Green-yellow
- connectable conductor materials:
- Copper || Aluminum
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 28 mm / 1.102 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fire load:
- 0.110 MJ
- flammability class per ul94:
- V0
- height:
- 64 mm / 2.52 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- note conductor cross section:
- 12 AWG: THHN, THWN
- packaging type:
- Box
- ratings per:
- IEC/EN 60947-7-2
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 11.283 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
