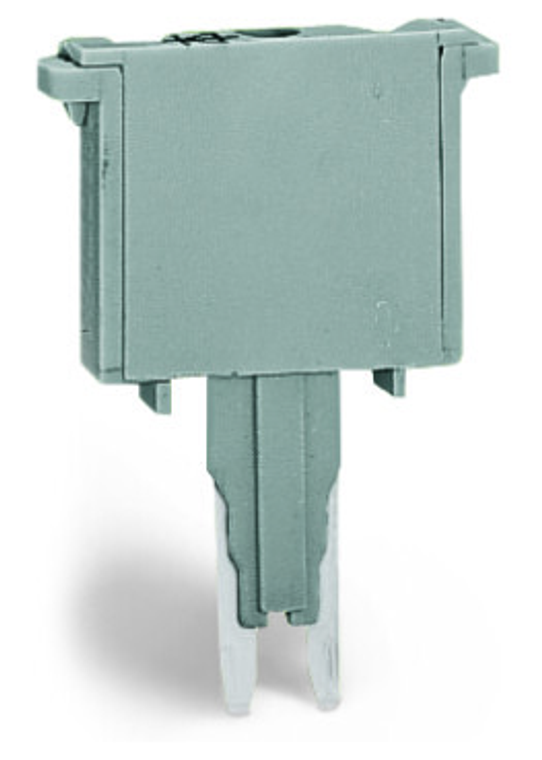

WAGO 280-801/281-411 Component plug; for carrier terminal blocks; 2-pole; with diode 1N4007; 5 mm wide; gray
Wago
$12.35
Diode module; with diode 1N4007; 5 mm wide.
The diode module features a 1N4007 diode with the anode on the right side, is part of the WAGO 280 series, and has 2 poles (2P). It is rated for a current of 0.5A, comes in a gray color, and supports plug-in mounting. This module is compatible with carrier terminal blocks and is equivalent to the model number 280801281411.
- color:
- Gray
- country of origin sales organisation germany:
- DE
- fire load:
- 0.066 MJ
- insulation material:
- Polyamide (PA66)
- operation status indicator:
- Without
- packaging type:
- Box
- rated current:
- 0.5 A
- weight:
- 2.600 g
- width:
- 5 mm / 0.197 inch
