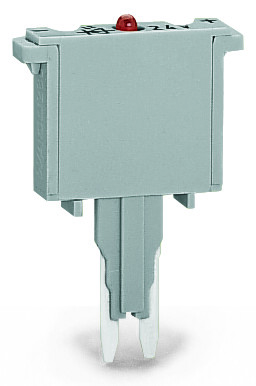

WAGO 280-854/281-413 Fuse plug; with soldered miniature fuse; with indicator lamp; LED (red); DC 15 - 30 V; 1 A FF; 5 mm wide; gray
Wago
$35.77
(No reviews yet)
Write a Review
Write a Review
Wago
WAGO 280-854/281-413 Fuse plug; with soldered miniature fuse; with indicator lamp; LED (red); DC 15 - 30 V; 1 A FF; 5 mm wide; gray
Fuse plug; 5 mm wide; with soldered miniature fuse; with additional indicator lamp; red LED; DC 15 - 30 V; 1 A FF.
The WAGO 280 series fuse plug features a soldered miniature fuse rated at 1A FF and includes an LED indicator for voltage ranges between 15-30Vdc. It has a rated current of 5A and comes in a gray color. This product is equivalent to the model number 280854281413.
- type of fuse:
- Minature fuse 1 A FF
- color:
- Gray
- country of origin sales organisation germany:
- DE
- fire load:
- 0.055 MJ
- insulation material:
- Polyamide (PA66)
- marking level:
- Without marking level
- nominal voltage iii 3:
- 125 V
- note on rated current 1:
- Leakage current in case of a blown fuse: LED 5 20 mA
- operation status indicator:
- 15 30 V
- packaging type:
- Box
- rated current:
- 0.208333333333333
- ratings note:
- Electrical ratings are given by the fuse and blown fuse indication.
- weight:
- 2.800 g
- width:
- 5 mm / 0.197 inch
