Wago

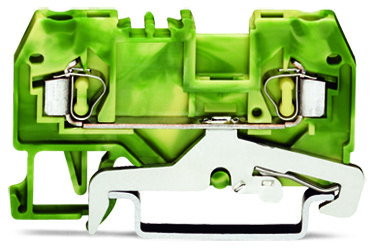

WAGO 280-907/999-950

SKU:

280-907/999-950

UPC:

MPN:

280-907/999-950

Condition:

New

actuation type:

Operating tool

connectable conductor materials note:

Terminating Aluminum ConductorsWAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO Alu-Plus Contact Paste is used for termination.Alu-Plus Contact Paste Advantages:Automatically

color:

Green-yellow

connectable conductor materials:

Copper || Aluminum

connection technology:

CAGE CLAMP

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

28 mm / 1.102 inch

design:

Horizontal type

fine stranded conductor:

0.08 2.5 mm / 28 12 AWG

fire load:

0.091 MJ

flammability class per ul94:

V0

height:

54 mm / 2.126 inch

insulation material:

Polyamide (PA66)

marking level:

Center marking

mounting type:

DIN-35 rail

note conductor cross section:

12 AWG: THHN, THWN

packaging type:

Box

ratings per:

IEC/EN 60947-7-2

solid conductor:

0.08 2.5 mm / 28 12 AWG

strip length:

8 9 mm / 0.31 0.35 inch

weight:

9.210 g

width:

5 mm / 0.197 inch

wiring direction:

Front-entry wiring
