Wago

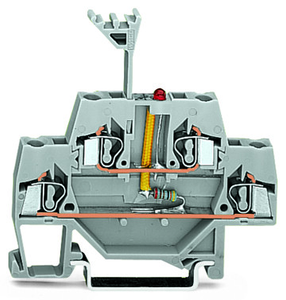

WAGO 280-943/281-413

SKU:

280-943/281-413

UPC:

MPN:

280-943/281-413

Condition:

New

actuation type:

Operating tool

connectable conductor materials note:

Terminating Aluminum ConductorsWAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO Alu-Plus Contact Paste is used for termination.Alu-Plus Contact Paste Advantages:Automatically

color:

Gray

connectable conductor materials:

Copper || Aluminum

connection technology:

CAGE CLAMP

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

58.5 mm / 2.303 inch

design:

Horizontal type

fine stranded conductor:

0.08 2.5 mm / 28 14 AWG

fire load:

0.160 MJ

flammability class per ul94:

V0

height:

64 mm / 2.52 inch

insulation material:

Polyamide (PA66)

marking level:

Center marking

mounting type:

DIN-35 rail

packaging type:

Box

rated current:

0.025 A

ratings per:

IEC/EN 60947-7-1

solid conductor:

0.08 2.5 mm / 28 14 AWG

strip length:

8 9 mm / 0.31 0.35 inch

weight:

10.280 g

width:

5 mm / 0.197 inch

wiring direction:

Front-entry wiring
