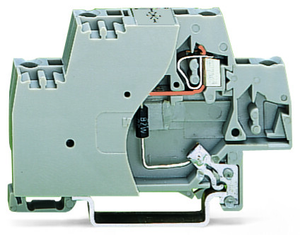

Terminal block with suppressor diode and end plate; 115 VAC.
The WAGO 280 series component feed-through terminal block is a double-deck terminal block with a built-in diode (1.5KE-C TVS) and end plate, designed for DIN-35 rail mounting. It features one feed-through pole with four wire connections (two clamps on each level) and supports wire sizes from 0.08mm² to 2.5mm² (#28AWG to #14AWG). The terminal block is rated for 115Vac and 20A, utilizing CAGE CLAMP spring connections for secure and reliable wiring. The unit is gray and has a width of 10mm, equivalent to model 280944281594.
- capacitance:
- 630 pF
- color:
- Gray
- connection points number:
- 4
- connection technology:
- CAGE CLAMP«
- continuous operating voltage max:
- AC 133 V
- country of origin sales organisation germany:
- DE
- depth:
- 64 mm / 2.52 inch
- design:
- With end plate
- fine stranded conductor:
- 0.08 ª 2.5 mm / 28 ª 14 AWG
- fire load:
- 0.270 MJ
- flammability class per ul94:
- V0
- height from upper edge of din rail:
- 39.5 mm / 1.555 inch
- insulation material:
- Polyamide (PA66)
- mounting type:
- DIN-35 rail
- nominal discharge current 8 20 s line:
- 26 A
- nominal operating voltage:
- AC 115 V
- packaging type:
- Box
- protection level 8 20 s:
- «± AC 388 V
- rated continuous current:
- 20 A
- solid conductor:
- 0.08 ª 2.5 mm / 28 ª 14 AWG
- strip length:
- 8 ª 9 mm / 0.31 ª 0.35 inch
- weight:
- 13.991 g
- width:
- 10 mm / 0.394 inch
