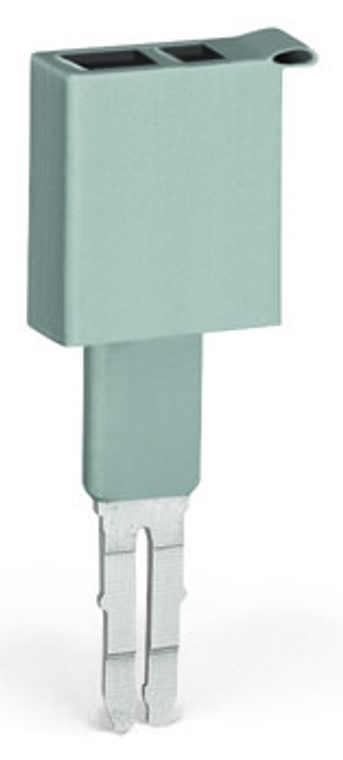

Test plug; 6 mm wide; Nominal current 24 A; for 0.08 mm² - 2.5 mm²; 2,50 mm²; gray.
The WAGO 281 series test plug is a 1-pole (1P) connector designed for wire sizes ranging from 0.08mm² to 2.5mm², with a rated current of 24A. It features CAGE CLAMP spring connections for secure and reliable wiring. The plug is gray in color, has a 6mm width, and is suitable for plug-in mounting. It is equivalent to the model 281407.
- color:
- Gray
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- fine stranded conductor:
- 0.08 2.5 mm / 28 14 AWG
- fire load:
- 0.032 MJ
- flammability class per ul94:
- V0
- insulation material:
- Polyamide (PA46)
- packaging type:
- Box
- rated current:
- 24 A
- solid conductor:
- 0.08 2.5 mm / 28 14 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 2.219 g
- width:
- 6 mm / 0.236 inch
- wiring direction:
- Front-entry wiring
- QN-QUOTE-REQUEST:
- true
