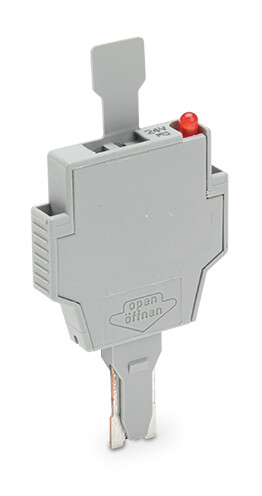

WAGO 281-512/281-417 Fuse plug; with pull-tab; for miniature metric fuses 5 x 20 mm and 5 x 25 mm; with blown fuse indication by neon lamp; 230 V; 6 mm wide; gray
Fuse plug with pull-tab; for miniature metric fuses 5 x 20 mm and 5 x 25 mm; with neon lamp, 230 V AC/DC; 6 mm wide.
The WAGO 281 series fuse plug features a pull-tab and a neon lamp for blown fuse indication at 230V. It has a rated current of 6.3A and comes in a gray color. This fuse plug is compatible with miniature metric fuses measuring 5x20mm and 5x25mm, and it is equivalent to the model numbers 281512 and 281417.
- type of fuse:
- Cylindrical fuse 5 x 20 mm and cylindrical fuse 5 x 25 mm
- color:
- Gray
- country of origin sales organisation germany:
- CN
- fire load:
- 0.082 MJ
- insulation material:
- Polyamide (PA66)
- marking level:
- Center marking
- nominal voltage iii 3:
- 250 V
- note on rated current 1:
- Leakage current in case of a blown fuse: Neon lamp < 0.4 mA
- operation status indicator:
- Without
- packaging type:
- Box
- rated current:
- 6.3 A
- ratings note:
- Electrical ratings are given by the fuse and blown fuse indication.
- weight:
- 6.530 g
- width:
- 6 mm / 0.236 inch
