Wago

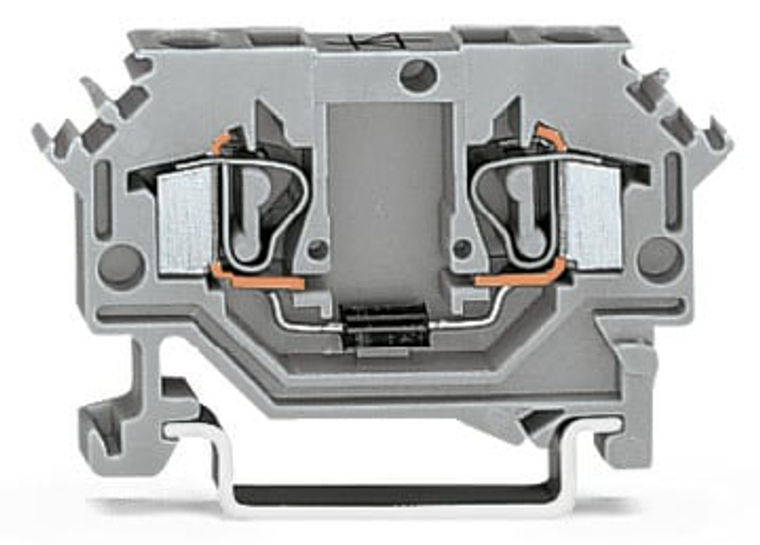

WAGO 281-603/281-401

SKU:

281-603/281-401

UPC:

MPN:

281-603/281-401

Condition:

New

actuation type:

Operating tool

connectable conductor materials note:

Terminating Aluminum ConductorsWAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO Alu-Plus Contact Paste is used for termination.Alu-Plus Contact Paste Advantages:Automatically

color:

Gray

connectable conductor materials:

Copper || Aluminum

connection technology:

CAGE CLAMP

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

29 mm / 1.142 inch

design:

Horizontal type

fine stranded conductor:

0.08 4 mm / 28 12 AWG

fire load:

0.130 MJ

flammability class per ul94:

V0

height:

53 mm / 2.087 inch

insulation material:

Polyamide (PA66)

marking level:

Side marking

mounting type:

DIN-35 rail

packaging type:

Box

rated current:

1.5 A

ratings per:

IEC/EN 60947-7-1

solid conductor:

0.08 4 mm / 28 12 AWG

strip length:

9 10 mm / 0.35 0.39 inch

weight:

7.905 g

width:

6 mm / 0.236 inch

wiring direction:

Front-entry wiring
