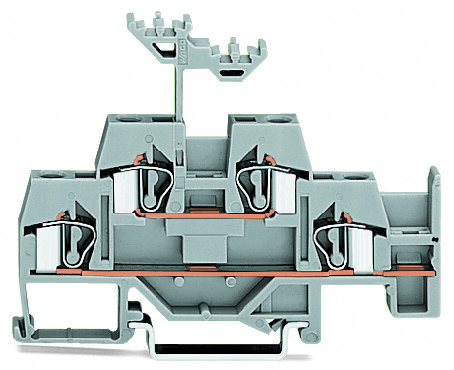

WAGO 281-620 Double-Deck Terminal Block, 4 Positions, 28-12 AWG, 26A, 500V
Wago
$7.13
Double-deck terminal block; Through/through terminal block; with additional jumper position on lower level; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm; CAGE CLAMPp>
- Automatically destroys the oxide film during clamping.
- Prevents fresh oxidation at the clamping point.
- Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).
- Provides long-term protection against corrosion.
The WAGO 281 series is a gray, double-deck feed-through terminal block with an additional jumper position on the lower level and a center marking slot. It features two feed-through poles accommodating four wires (two clamps per pole) and supports wire sizes from 0.08mm² to 4mm² (#28AWG to #12AWG). Rated for a current of 26A, it utilizes CAGE CLAMP spring connections and mounts on a DIN-35 rail (35 x 15 / 35 x 7.5) with a width of 6mm. This terminal block is equivalent to model 281620.
- actuation type:
- Operating tool
- connectable conductor materials note:
- Terminating Aluminum ConductorsWAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO Alu-Plus Contact Paste is used for termination.Alu-Plus Contact Paste Advantages:Automatically
- color:
- Gray
- connectable conductor materials:
- Copper || Aluminum
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- CN
- depth from upper edge of din rail:
- 58.5 mm / 2.303 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 4 mm / 28 12 AWG
- fire load:
- 0.029 MJ
- flammability class per ul94:
- V0
- height:
- 83.5 mm / 3.287 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 500 V
- packaging type:
- Box
- rated current:
- 26 A
- rated surge voltage iii 3:
- 6 kV
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.08 4 mm / 28 12 AWG
- strip length:
- 9 10 mm / 0.35 0.39 inch
- weight:
- 15.389 g
- width:
- 6 mm / 0.236 inch
- wiring direction:
- Front-entry wiring
