Wago

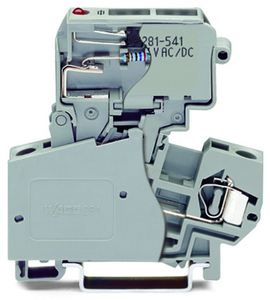

WAGO 281-623/281-541

SKU:

281-623/281-541

UPC:

MPN:

281-623/281-541

Condition:

New

actuation type:

Operating tool

connectable conductor materials note:

Terminating Aluminum ConductorsWAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO Alu-Plus Contact Paste is used for termination.Alu-Plus Contact Paste Advantages:Automatically

type of fuse:

Cylindrical fuse 1/4" x 1 1/4"

color:

Gray

connectable conductor materials:

Copper || Aluminum

connection technology:

CAGE CLAMP

country of origin sales organisation germany:

CN

depth from upper edge of din rail:

60 mm / 2.362 inch

design:

Angled

fine stranded conductor:

0.08 4 mm / 28 12 AWG

fire load:

0.399 MJ

flammability class per ul94:

V0

height:

60 mm / 2.362 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

marking level:

Center marking

mounting type:

DIN-35 rail

nominal voltage iii 3:

800 V

note on rated current 1:

Leakage current in case of a blown fuse: LED 6 mA

operation status indicator:

15 30 V

packaging type:

Box

rated current:

0.416666666666667

rated surge voltage iii 3:

8 kV

ratings note:

Electrical ratings are given by the fuse and blown fuse indication.

ratings per:

IEC/EN 60947-7-3

solid conductor:

0.08 4 mm / 28 12 AWG

strip length:

9 10 mm / 0.35 0.39 inch

weight:

20.114 g

width:

10 mm / 0.394 inch

wiring direction:

Front-entry wiring
