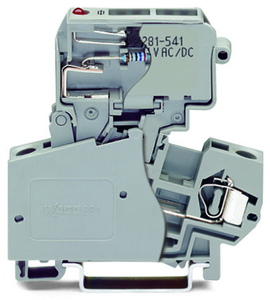

WAGO 281-623/281-542 2-Conductor Fuse Terminal Block with Pivoting Fuse Holder for 5 x 30 mm Fuses, Blown Fuse LED Indicator, 30-65 V, 10 A, CAGE CLAMP®, DIN Rail Mounting
Wago
$24.06
Fuse disconnect terminal block with pivoting fuse holder; "for miniature metric fuse "" x 1"""; 30 - 65 V; with blown fuse indication by LED.
The WAGO 281 series is a gray, single-pole feed-through terminal block with a single deck and a fused-disconnect lever type for 1/4" x 1-1/4" fuses. It features a blown-fuse LED indicator for 30-65Vdc and a center marking slot. The terminal block accommodates two wires (one clamp each) for wire sizes ranging from 0.08mm² to 4mm² or #28AWG to #12AWG, with a rated current of 10A. It uses CAGE CLAMP spring connections and is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) with a width of 10mm. The product is equivalent to part number 281623281542.
- actuation type:
- Operating tool
- connectable conductor materials note:
- Terminating Aluminum ConductorsWAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO Alu-Plus Contact Paste is used for termination.Alu-Plus Contact Paste Advantages:Automatically
- type of fuse:
- Cylindrical fuse 1/4" x 1 1/4"
- color:
- Gray
- connectable conductor materials:
- Copper || Aluminum
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 60 mm / 2.362 inch
- design:
- Angled
- fine stranded conductor:
- 0.08 4 mm / 28 12 AWG
- fire load:
- 0.038 MJ
- flammability class per ul94:
- V0
- height:
- 60 mm / 2.362 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 800 V
- note on rated current 1:
- Leakage current in case of a blown fuse: LED 6 mA
- operation status indicator:
- 30 65 V
- packaging type:
- Box
- rated current:
- 0.416666666666667
- rated surge voltage iii 3:
- 8 kV
- ratings note:
- Electrical ratings are given by the fuse and blown fuse indication.
- ratings per:
- IEC/EN 60947-7-3
- solid conductor:
- 0.08 4 mm / 28 12 AWG
- strip length:
- 9 10 mm / 0.35 0.39 inch
- weight:
- 20.234 g
- width:
- 10 mm / 0.394 inch
- wiring direction:
- Front-entry wiring
