WAGO 281-673/281-400
Wago
$15.74

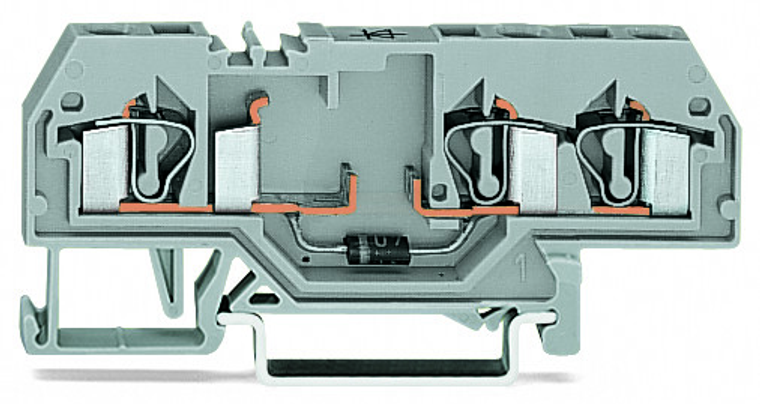

Component terminal block; 3-conductor; with diode 1N5408; anode, left side; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm²; CAGE CLAMP; 4,00 mm²; gray.
The WAGO 281 series component feed-through terminal block features a single deck with a diode (1N5408, anode on the left) and a center marking slot. It is gray, supports one feed-through pole with three wire connections (one clamp and two clamps), and accommodates wire sizes from 0.08mm² to 4mm² or #28AWG to #12AWG. The terminal block is rated for a current of 1.5A and uses CAGE CLAMP spring connections. It is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 6mm, equivalent to model 281673281400.
- actuation type:
- Operating tool
- connectable conductor materials note:
- Terminating Aluminum ConductorsWAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO Alu-Plus Contact Paste is used for termination.Alu-Plus Contact Paste Advantages:Automatically
- color:
- Gray
- connectable conductor materials:
- Copper || Aluminum
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- CN
- depth from upper edge of din rail:
- 29 mm / 1.142 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 4 mm / 28 12 AWG
- fire load:
- 0.003 MJ
- flammability class per ul94:
- V0
- height:
- 73.5 mm / 2.894 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- packaging type:
- Box
- rated current:
- 1.5 A
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.08 4 mm / 28 12 AWG
- strip length:
- 9 10 mm / 0.35 0.39 inch
- weight:
- 11.973 g
- width:
- 6 mm / 0.236 inch
- wiring direction:
- Front-entry wiring
