WAGO 281-907/999-950
Wago
$8.66

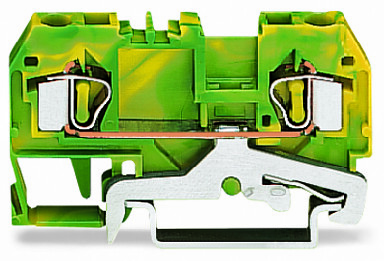

2-conductor ground terminal block; 4 mm; suitable for Ex e II applications; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP.
The WAGO 281 series ground/earthing terminal block is designed for Ex e II applications and features a 1-deck/level with a center marking slot. It is green-yellow in color and supports one grounding/protective-earth (1PE) connection for two wires using one clamp each (1+1). It accommodates wire sizes from 0.08mm² to 4mm² or #28AWG to #12AWG and utilizes CAGE CLAMP spring connections. The terminal block mounts on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 6mm, equivalent to model number 281907999950.
- actuation type:
- Operating tool
- connectable conductor materials note:
- Terminating Aluminum ConductorsWAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO Alu-Plus Contact Paste is used for termination.Alu-Plus Contact Paste Advantages:Automatically
- color:
- Green-yellow
- connectable conductor materials:
- Copper || Aluminum
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 29 mm / 1.142 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 4 mm / 28 12 AWG
- fire load:
- 0.132 MJ
- flammability class per ul94:
- V0
- height:
- 59 mm / 2.323 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- packaging type:
- Box
- ratings per:
- IEC/EN 60947-7-2
- solid conductor:
- 0.08 4 mm / 28 12 AWG
- strip length:
- 9 10 mm / 0.35 0.39 inch
- weight:
- 12.644 g
- width:
- 6 mm / 0.236 inch
- wiring direction:
- Front-entry wiring
