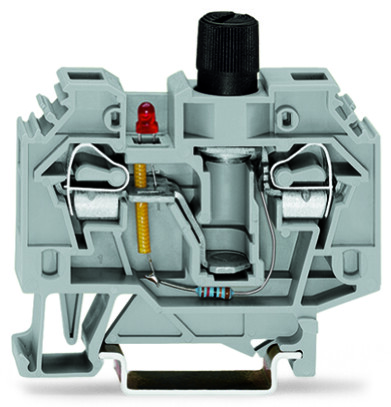

WAGO 282-128/281-413
Wago
$25.21
2-conductor fuse terminal block; for glass cartridge fuse 1/4" x 1 1/4"; with blown fuse indication by LED; 24 VDC; for DIN-rail 35 x 15 and 35 x 7.5; 6 mm²; CAGE CLAMP; 6,00 mm²; gray.
The WAGO 282 series is a gray feed-through terminal block featuring a single deck with a fused-disconnect for 1/4" x 1-1/4" fuses, an LED indicator for blown fuses, and side marking slots. It has one disconnect feed-through pole (1P) and accommodates two wires with CAGE CLAMP spring connections, suitable for wire sizes ranging from 0.2mm² to 6mm² or #24AWG to #10AWG. The terminal block is rated for a current of 10A and is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) with a width of 13mm. It is equivalent to the model number 282128281413.
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- CN
- depth from upper edge of din rail:
- 56.5 mm / 2.224 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.2 6 mm / 24 10 AWG
- fire load:
- 0.433 MJ
- flammability class per ul94:
- V0
- height:
- 62 mm / 2.441 inch
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Side marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 24 V
- packaging type:
- Box
- rated current:
- 0.416666666666667
- solid conductor:
- 0.2 6 mm / 24 10 AWG
- strip length:
- 12 13 mm / 0.47 0.51 inch
- weight:
- 27.951 g
- width:
- 13 mm / 0.512 inch
- wiring direction:
- Side-entry wiring
