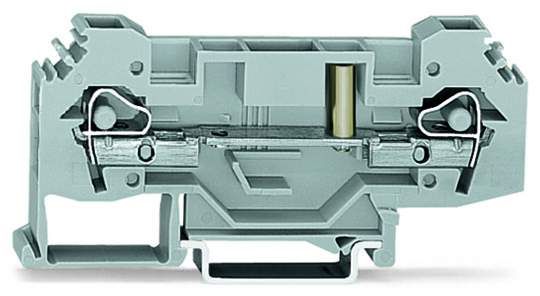

WAGO 282-133 2-Conductor Through Terminal Block, 6 mm², CAGE CLAMP®, Gray
Wago
$7.65
2-conductor through terminal block; 6 mm²; with test option; for 4 mm à test plugs; same profile as 2-conductor disconnect terminal block; lateral marker slots; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 6,00 mm²; gray.
The WAGO 282 series feed-through terminal block is a gray, single-deck unit with side marking slots and a test point, designed for one feed-through pole and two wires (one clamp each). It accommodates wire sizes from 0.2mm² to 6mm² or #24AWG to #10AWG, and supports a rated current of 41A. Featuring CAGE CLAMP spring connections, it mounts on a DIN-35 rail (35 x 15 / 35 x 7.5) and has an 8mm width, equivalent to model 282133.
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- CN
- depth from upper edge of din rail:
- 37 mm / 1.457 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.2 6 mm / 24 10 AWG
- fire load:
- 0.297 MJ
- flammability class per ul94:
- V0
- height:
- 87.5 mm / 3.445 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Side marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 400 V
- packaging type:
- Box
- rated current:
- 41 A
- rated surge voltage iii 3:
- 6 kV
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.2 6 mm / 24 10 AWG
- strip length:
- 12 13 mm / 0.47 0.51 inch
- weight:
- 19.160 g
- width:
- 8 mm / 0.315 inch
- wiring direction:
- Side-entry wiring
