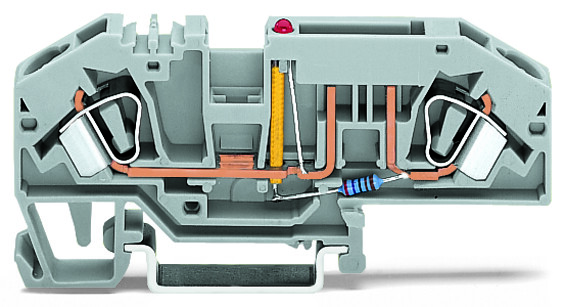

WAGO 282-698/281-413 terminal block, 2-position, 24-10 AWG, 30 A, 400 V, gray
Wago
$27.80
2-conductor fuse terminal block for mini-automotive blade-style fuses; with test option; 24 V; with blown fuse indication by LED; Power consumption LED: 4.8 mA.
The WAGO 282 series feed-through terminal block features a single deck with a blade-style fused disconnect and a blown-fuse LED indicator for 24Vdc. It includes a center marking slot and a test point, designed for one disconnect feed-through pole and two wires with one clamp each. Suitable for wire sizes ranging from 0.2mm² to 6mm² or #24AWG to #10AWG, it supports a rated current of 25A to 30A. The terminal block uses CAGE CLAMP spring connections and mounts on a DIN-35 rail with dimensions of 35 x 15 or 35 x 7.5 mm, and has an 8mm width, equivalent to model 282698281413.
- actuation type:
- Operating tool
- connectable conductor materials note:
- Terminating Aluminum ConductorsWAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO Alu-Plus Contact Paste is used for termination.Alu-Plus Contact Paste Advantages:Automatically
- color:
- Green-yellow
- connectable conductor materials:
- Copper || Aluminum
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 28 mm / 1.102 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fire load:
- 0.091 MJ
- flammability class per ul94:
- V0
- height:
- 54 mm / 2.126 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- note conductor cross section:
- 12 AWG: THHN, THWN
- packaging type:
- Box
- ratings per:
- IEC/EN 60947-7-2
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 9.210 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
