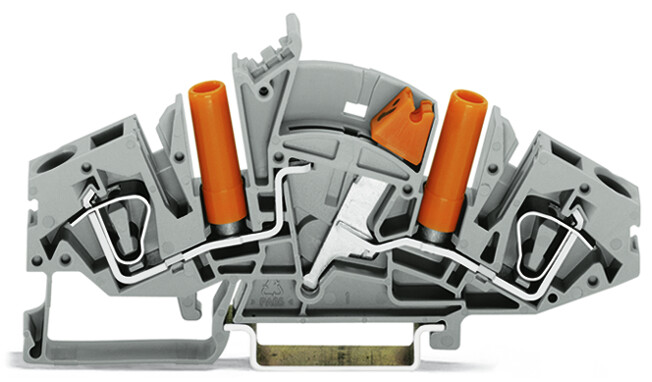

WAGO 282-821
Wago
$20.41
2-conductor disconnect/test terminal block; longitudinal switching; with touch-proof test sockets; for 4 mm à test plugs; for DIN-rail 35 x 15 and 35 x 7.5; 6 mm²; CAGE CLAMP; 6,00 mm²; gray.
The WAGO 282 series is a gray feed-through disconnect/test terminal block featuring a single deck with a longitudinal lever disconnect, side and center marking slots, and a touchproof test point. It accommodates one disconnect feed-through pole for two wires (one clamp each) and supports wire sizes from 0.2mm² to 6mm² (#24AWG to #10AWG). Rated for a current of 30A, it utilizes CAGE CLAMP spring connections and mounts on a DIN-35 rail (35 x 15 / 35 x 7.5) with an 8mm width, equivalent to model 282821.
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- CN
- depth from upper edge of din rail:
- 46.5 mm / 1.831 inch
- design:
- Angled
- fine stranded conductor:
- 0.2 6 mm / 24 10 AWG
- fire load:
- 0.349 MJ
- flammability class per ul94:
- V0
- height:
- 98 mm / 3.858 inch
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 500 V
- packaging type:
- Box
- rated current:
- 30 A
- rated surge voltage iii 3:
- 6 kV
- solid conductor:
- 0.2 6 mm / 24 10 AWG
- strip length:
- 12 13 mm / 0.47 0.51 inch
- weight:
- 24.774 g
- width:
- 8 mm / 0.315 inch
- wiring direction:
- Front-entry wiring
