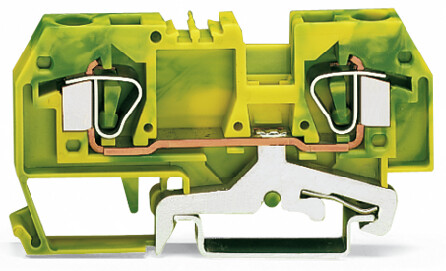

2-conductor ground terminal block; 6 mm; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP.
The WAGO 282 series ground/earthing terminal block is a green-yellow, single-deck unit with a center marking slot, designed for grounding/protective-earth applications. It accommodates two wires using CAGE CLAMP spring connections, suitable for wire sizes ranging from 0.2mm² to 6mm² or #24AWG to #10AWG. The terminal block mounts on a DIN-35 rail (35 x 15 / 35 x 7.5) and has an 8mm width, equivalent to model 282907.
- actuation type:
- Operating tool
- color:
- Green-yellow
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 32.5 mm / 1.28 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.2 6 mm / 24 10 AWG
- fire load:
- 0.248 MJ
- flammability class per ul94:
- V0
- height:
- 74.5 mm / 2.933 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- packaging type:
- Box
- ratings per:
- IEC/EN 60947-7-2
- solid conductor:
- 0.2 6 mm / 24 10 AWG
- strip length:
- 12 13 mm / 0.47 0.51 inch
- weight:
- 22.030 g
- width:
- 8 mm / 0.315 inch
- wiring direction:
- Front-entry wiring
