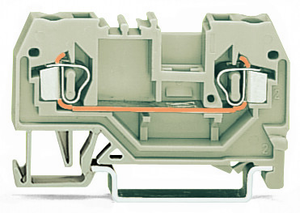

WAGO 282-992 2-Conductor Through Terminal Block, 6 mm², Ex e II, CAGE CLAMP®, Light Gray
Wago
$4.52
2-conductor through terminal block; 6 mm²; suitable for Ex e II applications; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 6,00 mm²; light gray.
The WAGO 282 series feed-through terminal block is a light gray, single-deck unit with a center marking slot, designed for Ex e II applications. It features one feed-through pole with two wires (one clamp each) and supports wire sizes from 0.2mm² to 6mm² or #24AWG to #10AWG. The terminal block is rated for a current of 39A and utilizes CAGE CLAMP spring connections. It is mounted on a DIN-35 rail (35 x 15 / 35 x 7.5) and has an 8mm width, equivalent to model 282992.
- actuation type:
- Operating tool
- color:
- Light gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 32.5 mm / 1.28 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.2 6 mm / 24 10 AWG
- fire load:
- 0.267 MJ
- flammability class per ul94:
- V0
- height:
- 74.5 mm / 2.933 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- packaging type:
- Box
- rated current ex e ii:
- 39 A
- rated voltage en ex e ii:
- 550 V
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.2 6 mm / 24 10 AWG
- strip length:
- 12 13 mm / 0.47 0.51 inch
- weight:
- 15.816 g
- width:
- 8 mm / 0.315 inch
- wiring direction:
- Front-entry wiring
