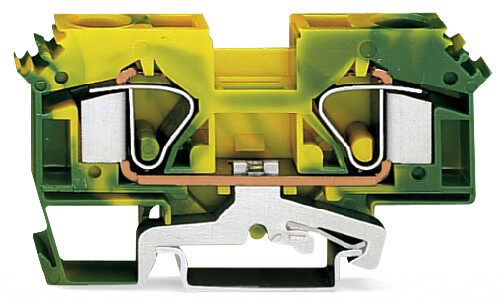

WAGO 283-607/999-950 2-Wire Protective Earth Terminal Block
Wago
$15.75
2-conductor ground terminal block; 16 mm²; suitable for Ex e II applications; lateral marker slots; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 16,00 mm²; green-yellow.
The WAGO 283 series ground/earthing terminal block is designed for Ex e II applications and features a 1-deck/level with side/lateral marking slots. It is green-yellow in color and supports 1 grounding/protective-earth (1PE) connection for 2 wires using 1 clamp each (1+1). It accommodates wire sizes from 0.2mm² to 16mm² or #24AWG to #6AWG and utilizes CAGE CLAMP spring connections. The terminal block mounts on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 12mm, equivalent to model 283607999950.
- actuation type:
- Operating tool
- color:
- Green-yellow
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 37.5 mm / 1.476 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.2 16 mm / 24 6 AWG
- fire load:
- 0.449 MJ
- flammability class per ul94:
- V0
- height:
- 80 mm / 3.15 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Side marking
- mounting type:
- DIN-35 rail
- packaging type:
- Box
- ratings per:
- IEC/EN 60947-7-2
- solid conductor:
- 0.2 16 mm / 24 6 AWG
- strip length:
- 16 17 mm / 0.63 0.67 inch
- weight:
- 42.624 g
- width:
- 12 mm / 0.472 inch
- wiring direction:
- Front-entry wiring
