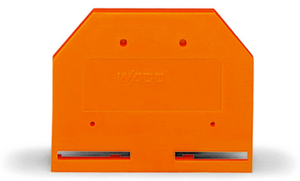

End and intermediate plate; 2.5 mm thick; orange.
The WAGO 284 series end and intermediate plate, in orange color and with a width of 2.5mm, is equivalent to the model 284328.
- actuation type:
- Push-in || Operating tool
- approvals per:
- UL 1059
- color:
- Black
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- depth from upper edge of din rail:
- 32.9 mm / 1.295 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.14 1.5 mm / 24 16 AWG
- fine stranded conductor with ferrule push in termination:
- 0.5 0.75 mm / 20 18 AWG
- fine stranded conductor with insulated ferrule:
- 0.14 0.75 mm / 24 18 AWG
- fire load:
- 0.092 MJ
- flammability class per ul94:
- V0
- height:
- 58.2 mm / 2.291 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 1 mm
- nominal voltage iii 3:
- 800 V
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- packaging type:
- Box
- rated current:
- 13.5 A
- rated current 2:
- 17.5 A
- rated current csa use group b:
- 0.416666666666667
- rated current csa use group c:
- 0.416666666666667
- rated current ex e ii:
- 13 A
- rated current ex e ii with jumper:
- 0
- rated current ul use group b:
- 15 A
- rated current ul use group c:
- 15 A
- rated surge voltage iii 3:
- 8 kV
- rated voltage csa use group b:
- 600 V
- rated voltage csa use group c:
- 600 V
- rated voltage en ex e ii:
- 550 V
- rated voltage ul use group b:
- 600 V
- rated voltage ul use group c:
- 600 V
- ratings per:
- ATEX: PTB 11 ATEX 1041 U / IECEx: PTB 11.0093U (Ex eb IIC Gb)
- solid conductor:
- 0.14 1.5 mm / 24 16 AWG
- solid conductor push in termination:
- 0.5 1.5 mm / 20 16 AWG
- strip length:
- 9 11 mm / 0.35 0.43 inch
- weight:
- 4.340 g
- width:
- 3.5 mm / 0.138 inch
- wiring direction:
- Front-entry wiring
