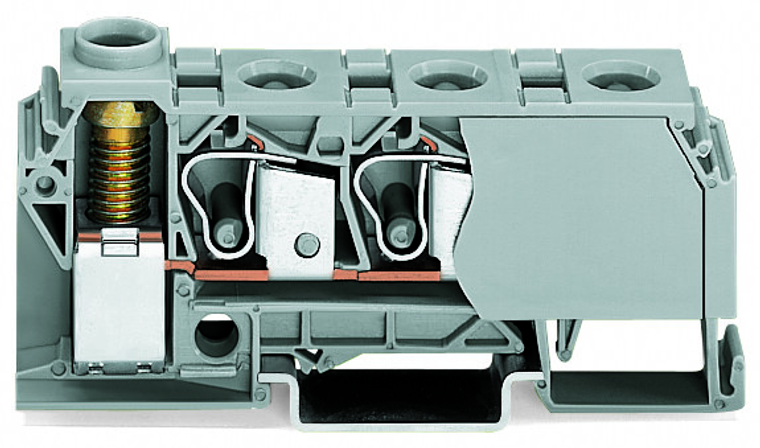

WAGO 284-624 Distribution Terminal Block, 4 Positions, 10mm², Blue
Wago
$33.11
Distribution terminal block; 10 mm²; lateral marker slots; for DIN-rail 35 x 15 and 35 x 7.5; screw-type and CAGE CLAMPconnection; 3 x CAGE CLAMP connection 10 mm²; 1 x screw-clamp connection 35 mm²; 10,00 mm²; blue.
The WAGO 284 series neutral-through distribution terminal block is a blue, single-deck unit with side marking slots, designed for neutral-through pole (N) connections and accommodating up to four wires (one screw and three clamps). It supports wire sizes from 0.2mm² to 10mm² (#24AWG to #8AWG) and is rated for a current of 125A. The terminal block features both CAGE CLAMP spring connections and screw-clamp connections, and it mounts on a DIN-35 rail (35 x 15 / 35 x 7.5) with a width of 17.5mm. It is equivalent to the model 284624.
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 35 mm / 1.378 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.2 10 mm / 24 8 AWG
- fire load:
- 0.348 MJ
- flammability class per ul94:
- V0
- height:
- 78 mm / 3.071 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 800 V
- packaging type:
- Box
- rated current:
- 57 A
- rated surge voltage iii 3:
- 8 kV
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.2 10 mm / 24 8 AWG
- strip length:
- 12 13 mm / 0.47 0.51 inch
- weight:
- 23.100 g
- width:
- 10 mm / 0.394 inch
- wiring direction:
- Front-entry wiring
