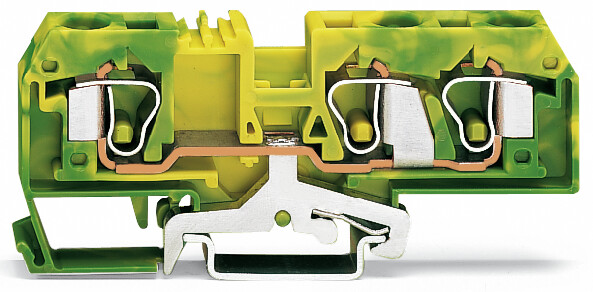

WAGO 284-687/999-950 3-Conductor Ground Terminal Block, 10 mm², Ex e II, DIN Rail Mount
Wago
$18.11
3-conductor ground terminal block; 10 mm; suitable for Ex e II applications; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP.
The WAGO 284 series ground/earthing terminal block is designed for Ex e II applications and features a 1-deck/level with a center marking slot. It is green-yellow in color and includes one grounding/protective-earth (1PE) terminal that can accommodate three wires using one clamp and two additional clamps (1+2). It supports wire sizes ranging from 0.2mm² to 10mm² or #24AWG to #8AWG and utilizes CAGE CLAMP spring connections. The terminal block is mounted on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 10mm, equivalent to model number 284687999950.
- actuation type:
- Operating tool
- color:
- Green-yellow
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 35 mm / 1.378 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.2 10 mm / 24 8 AWG
- fire load:
- 0.409 MJ
- flammability class per ul94:
- V0
- height:
- 97.5 mm / 3.839 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- packaging type:
- Box
- ratings per:
- IEC/EN 60947-7-2
- solid conductor:
- 0.2 10 mm / 24 8 AWG
- strip length:
- 12 13 mm / 0.47 0.51 inch
- weight:
- 40.044 g
- width:
- 10 mm / 0.394 inch
- wiring direction:
- Front-entry wiring
