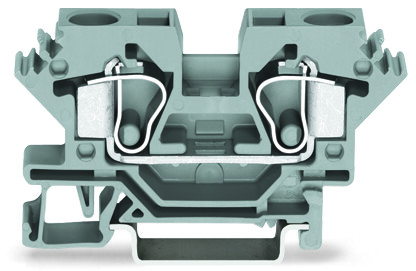

WAGO 284-691 2-Conductor Through Terminal Block, 10 mm², Ex e II, CAGE CLAMP®, Light Gray
Wago
$6.14
2-conductor through terminal block; 10 mm²; suitable for Ex e II applications; lateral marker slots; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 10,00 mm²; light gray.
The WAGO 284 series feed-through terminal block is a light gray, single-deck component with side marking slots, designed for Ex e II applications. It features one feed-through pole and accommodates two wires using CAGE CLAMP spring connections, suitable for wire sizes ranging from 0.2mm² to 10mm² or #24AWG to #8AWG. Rated for a current of 53A, it mounts on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 10mm, equivalent to model 284691.
- actuation type:
- Operating tool
- color:
- Light gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 33.5 mm / 1.319 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.2 10 mm / 24 8 AWG
- fire load:
- 0.261 MJ
- flammability class per ul94:
- V0
- height:
- 69 mm / 2.717 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Side marking
- mounting type:
- DIN-35 rail
- packaging type:
- Box
- rated current ex e ii:
- 53 A
- rated voltage en ex e ii:
- 550 V
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.2 10 mm / 24 8 AWG
- strip length:
- 12 13 mm / 0.47 0.51 inch
- weight:
- 18.721 g
- width:
- 10 mm / 0.394 inch
- wiring direction:
- Front-entry wiring
