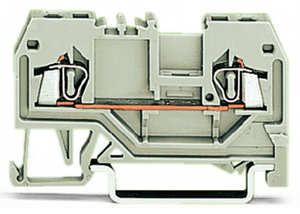

2-conductor through terminal block; 10 mm; suitable for Ex e II applications; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMPp>
Electrical Data
- Rated voltage EN (Ex e II): 550 V
- Rated current (Ex e II): 53 A
Connection Data
- Connection technology: CAGE CLAMP<sup></sup>
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 0.2 10 mm / 24 8 AWG
- Fine-stranded conductor: 0.2 10 mm / 24 8 AWG
- Strip length: 12 13 mm / 0.47 0.51 inch
- Total number of connection points: 2
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Front-entry wiring
Geometrical Data
- Width: 10 mm / 0.394 inch
- Height from upper-edge of DIN-35 rail: 35 mm / 1.378 inch
- Depth: 78 mm / 3.071 inch
Mechanical Data
- Design: horizontal
- Type of mounting: DIN-35 rail
- Marking level: Center marking
Material Data
- Color: light gray
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.348 MJ
- Weight: 23.206 g
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918305815
- Customs Tariff No.: 85369010000
The WAGO 284 series feed-through terminal block is a light gray, single-deck component with a center marking slot, designed for Ex e II applications. It features one feed-through pole with two wires (one clamp each) and supports wire sizes from 0.2mm² to 10mm² or #24AWG to #8AWG. The terminal block is rated for a current of 53A and utilizes CAGE CLAMP spring connections. It is mounted on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 10mm, equivalent to model 284992.
- actuation type:
- Operating tool
- color:
- Light gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 35 mm / 1.378 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.2 10 mm / 24 8 AWG
- fire load:
- 0.348 MJ
- flammability class per ul94:
- V0
- height:
- 78 mm / 3.071 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- packaging type:
- Box
- rated current ex e ii:
- 53 A
- rated voltage en ex e ii:
- 550 V
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.2 10 mm / 24 8 AWG
- strip length:
- 12 13 mm / 0.47 0.51 inch
- weight:
- 23.206 g
- width:
- 10 mm / 0.394 inch
- wiring direction:
- Front-entry wiring
