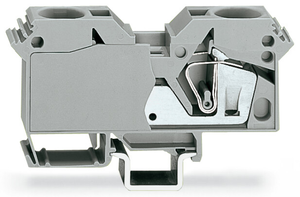

WAGO 285-133

(No reviews yet) Write a Review

Write a Review

WAGO 285-133

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

285-133

UPC:

MPN:

Condition:

New

actuation type:

Operating tool

approvals per:

UL 1059

color:

Red

connectable conductor materials:

Copper

connection technology:

POWER CAGE CLAMP

country of origin sales organisation germany:

PL

depth from upper edge of din rail:

63 mm / 2.48 inch

design:

Horizontal type

fine stranded conductor:

6 35 mm / 8 2 AWG

fine stranded conductor with insulated ferrule:

6 35 mm / 8 2 AWG

fine stranded conductor with uninsulated ferrule:

6 35 mm / 8 2 AWG

fire load:

0.078 MJ

flammability class per ul94:

V0

height:

86 mm / 3.386 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

marking level:

Side marking

mounting type:

DIN-35 rail

nominal voltage iii 3:

1000 V

packaging type:

Box

rated current:

125 A

rated current csa use group b:

115 A

rated current csa use group d:

115 A

rated current ul use group b:

115 A

rated current ul use group c:

115 A

rated surge voltage iii 3:

8 kV

rated voltage csa use group b:

600 V

rated voltage csa use group c:

600 V

rated voltage ul use group b:

600 V

rated voltage ul use group c:

600 V

ratings per:

IEC/EN 60947-7-1

safety information 1:

Only suitable for DIN 35 x 15 rail

solid conductor:

6 35 mm / 8 2 AWG

stranded conductor:

6 35 mm / 8 2 AWG

strip length:

25 mm / 0.98 inch

weight:

81.491 g

width:

16 mm / 0.63 inch

wiring direction:

Side-entry wiring
