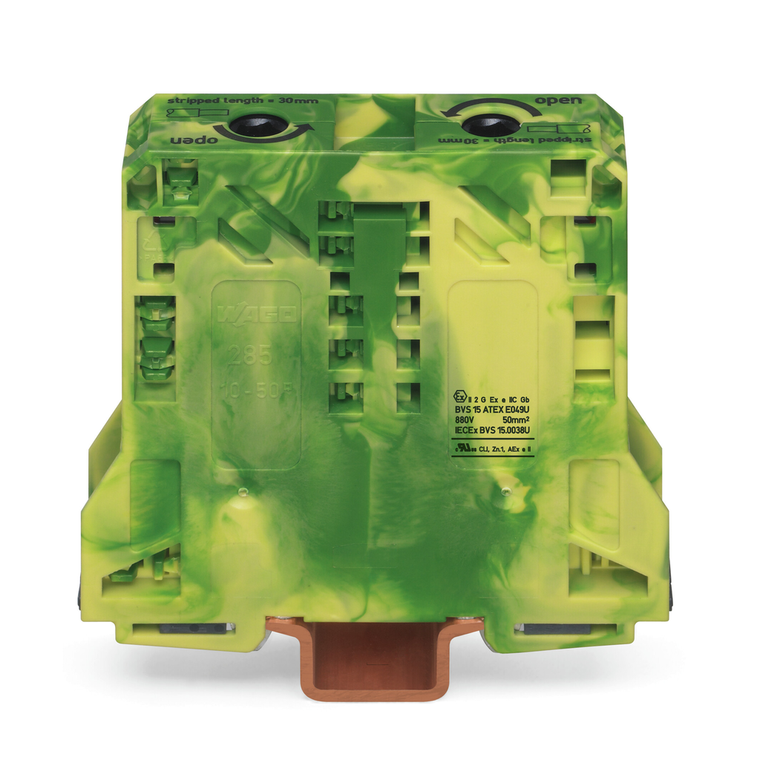

WAGO 285-157/999-950 2-Conductor Ground Terminal Block, 50 mm², Ex e II, DIN Rail Mount
Wago
$53.14
2-conductor ground terminal block; 50 mm; suitable for Ex e II applications; lateral marker slots; only for DIN 35 x 15 rail; 2.3 mm thick; copper; POWER CAGE CLAMP.
The WAGO 285 series ground/earthing terminal block is designed for Ex e II applications and features a single deck with side marking slots. It is green-yellow in color and supports one grounding/protective-earth connection for two wires using a 1+1 clamp configuration. The terminal block has a nominal cross-section of 50mm² and accommodates wire sizes ranging from 10mm² to 70mm² or #8AWG to #2/0AWG. It utilizes POWER CAGE-CLAMP screw connections and is mounted on a DIN-35 rail with dimensions of 35 x 15mm and a width of 20mm. This product is equivalent to the model number 285157999950.
- actuation type:
- Operating tool
- color:
- Green-yellow
- connectable conductor materials:
- Copper
- connection technology:
- POWER CAGE CLAMP
- country of origin sales organisation germany:
- PL
- depth from upper edge of din rail:
- 87 mm / 3.425 inch
- design:
- Horizontal type
- fine stranded conductor:
- 10 70 mm / 8 2/0 AWG
- fine stranded conductor with insulated ferrule:
- 10 50 mm / 8 1/0 AWG
- fine stranded conductor with uninsulated ferrule:
- 10 50 mm / 8 1/0 AWG
- fire load:
- 1.910 MJ
- flammability class per ul94:
- V0
- height:
- 94 mm / 3.701 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Side marking
- mounting type:
- DIN-35 rail
- packaging type:
- Box
- ratings per:
- IEC/EN 60947-7-2
- safety information 1:
- Only on DIN 35 x 15 rail: 2.3 mm thick, copper
- solid conductor:
- 10 50 mm / 8 1/0 AWG
- stranded conductor:
- 10 50 mm / 8 1/0 AWG
- strip length:
- 30 mm / 1.18 inch
- weight:
- 185.122 g
- width:
- 20 mm / 0.787 inch
- wiring direction:
- Side-entry wiring
