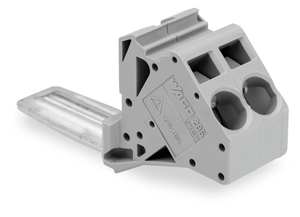

WAGO 285-407 power tap for 95 mm² high-current terminal blocks
Wago
$5.04
Power tap; for 95 mm² high-current tbs; 10,00 mm²; gray.
The WAGO 285 series power tap, model 285407, is a gray-colored electrical component designed for high-current applications with a rated current of 57A. It features CAGE CLAMP spring connections and is compatible with 95mm² high-current terminal blocks. The power tap has a width of 20mm.
- approvals per:
- C22.2 No 158
- color:
- Gray
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- PL
- design:
- Angled
- fine stranded conductor:
- 0.2 10 mm / 24 8 AWG
- fine stranded conductor 2:
- 0.2 16 mm / 24 8 AWG
- fire load:
- 0.250 MJ
- insulation material:
- Polyamide (PA66)
- marking level:
- Center marking
- module width:
- 20 mm / 0.787 inch
- nominal voltage iii 3:
- 1000 V
- packaging type:
- Box
- rated current:
- 57 A
- rated current csa use group b:
- 57 A
- rated current csa use group d:
- 57 A
- rated current ul use group b:
- 50 A
- rated current ul use group c:
- 50 A
- rated surge voltage iii 3:
- 8 kV
- rated voltage csa use group b:
- 600 V
- rated voltage csa use group c:
- 600 V
- rated voltage ul use group b:
- 600 V
- rated voltage ul use group c:
- 600 V
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.2 10 mm / 24 8 AWG
- solid conductor 2:
- 0.2 16 mm / 24 8 AWG
- strip length:
- 12 13 mm / 0.47 0.51 inch
- weight:
- 22.575 g
- width:
- 20 mm / 0.787 inch
- wiring direction:
- Front-entry wiring
