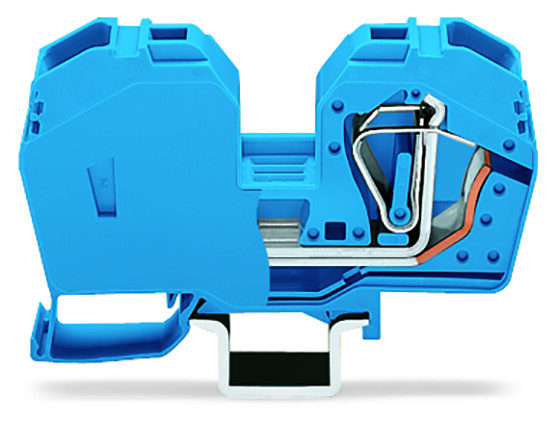

POWER CAGE CLAMP feedthrough terminal block; with integrated end plate; DIN 35 x 15 rail mount; 2-conductor; 2 AWG; 16 mm wide; blue.
The WAGO 285 series terminal block is a blue, neutral-through terminal with a single deck and built-in end plate, featuring side and center marking slots. It accommodates two wires with a nominal cross-section of 35mm², suitable for wire sizes ranging from 6mm² to 35mm² or #10AWG to #2AWG. The terminal block supports a rated current of 125A and utilizes CAGE CLAMP spring connections. It is designed for mounting on a DIN-35 rail (35 x 15) with a width of 16mm and is equivalent to model 285634.
- actuation type:
- Operating tool
- color:
- Blue
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- PL
- depth from upper edge of din rail:
- 53 mm / 2.087 inch
- design:
- Horizontal type
- fine stranded conductor:
- 6 35 mm / 10 2 AWG
- fire load:
- 0.158 MJ
- flammability class per ul94:
- V0
- height:
- 100 mm / 3.937 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 35 mm
- nominal voltage iii 3:
- 1000 V
- packaging type:
- Box
- rated current:
- 125 A
- rated surge voltage iii 3:
- 8 kV
- ratings per:
- IEC/EN 60947-7-1
- safety information 1:
- Only suitable for DIN 35 x 15 rail
- solid conductor:
- 6 35 mm / 10 2 AWG
- strip length:
- 23 mm / 0.91 inch
- weight:
- 87.500 g
- width:
- 16 mm / 0.63 inch
- wiring direction:
- Front-entry wiring
