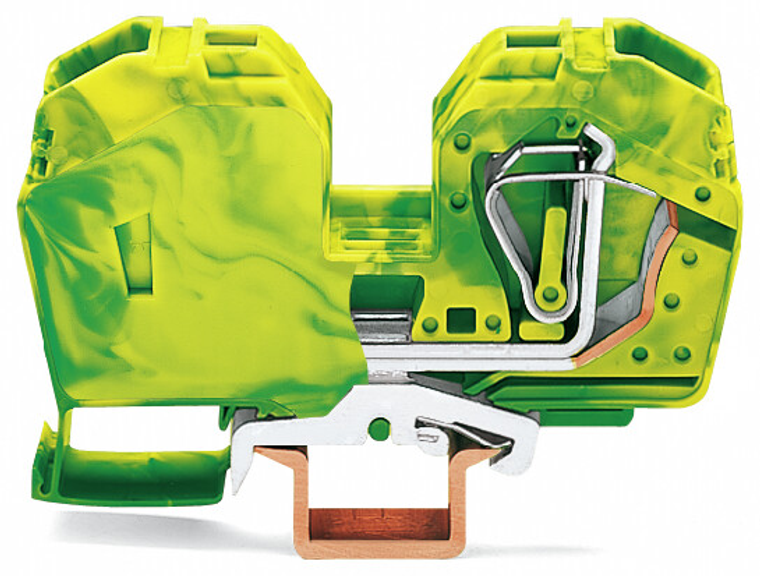

WAGO 285-637/999-950 2-Conductor Ground Terminal Block, 25 mm², Integrated End Plate, Ex e II Applications, Green-Yellow
Wago
$27.26
2-conductor ground terminal block; 25 mm; with integrated end plate; suitable for Ex e II applications; side and center marking; only for DIN 35 x 15 rail; CAGE CLAMP.
The WAGO 285 series ground/earthing terminal block is designed for Ex e II applications and features a 1-deck/level with a built-in end plate, closed on both sides. It includes side/lateral and center marking slots and is green-yellow in color. The terminal block supports one grounding/protective-earth (1PE) connection for two wires (1 clamp + 1 clamp) with a nominal cross-section of 25mm² for the main conductor to ground. It accommodates wire sizes from 6mm² to 25mm² or #8AWG to #4AWG and utilizes CAGE CLAMP spring connections. The terminal block mounts on a DIN-35 rail (35 x 15) with a 16mm width and is equivalent to model 285637999950.
- actuation type:
- Operating tool
- color:
- Green-yellow
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 53 mm / 2.087 inch
- design:
- Horizontal type
- fine stranded conductor:
- 6 25 mm / 10 4 AWG
- fire load:
- 0.144 MJ
- flammability class per ul94:
- V0
- height:
- 100 mm / 3.937 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 25 mm
- packaging type:
- Box
- ratings per:
- IEC/EN 60947-7-2
- safety information 1:
- Only suitable for DIN 35 x 15 rail
- solid conductor:
- 6 25 mm / 10 2 AWG
- strip length:
- 23 mm / 0.91 inch
- weight:
- 105.000 g
- width:
- 16 mm / 0.63 inch
- wiring direction:
- Front-entry wiring
