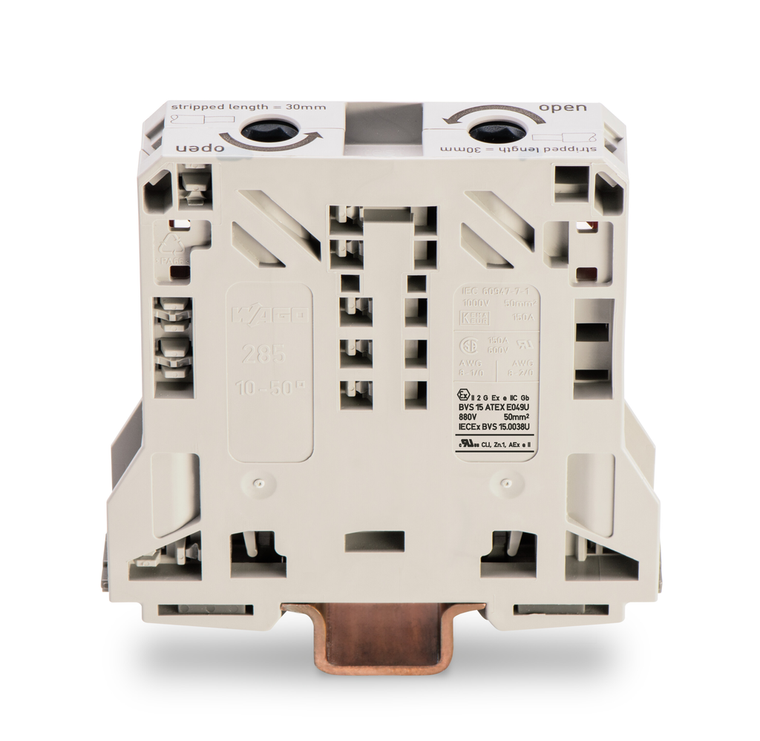

WAGO 285-950
- SKU:
- 285-950
- Condition:
- New
- actuation type:
- Operating tool
- approvals per:
- UL 1059
- color:
- Light gray
- connectable conductor materials:
- Copper
- connection technology:
- POWER CAGE CLAMP
- country of origin sales organisation germany:
- PL
- depth from upper edge of din rail:
- 87 mm / 3.425 inch
- design:
- Horizontal type
- fine stranded conductor:
- 10 70 mm / 8 2/0 AWG
- fine stranded conductor with insulated ferrule:
- 10 50 mm / 8 1/0 AWG
- fine stranded conductor with uninsulated ferrule:
- 10 50 mm / 8 1/0 AWG
- fire load:
- 2.092 MJ
- flammability class per ul94:
- V0
- height:
- 94 mm / 3.701 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Side marking
- mounting type:
- DIN-35 rail
- packaging type:
- Box
- rated current csa use group b:
- 150 A
- rated current csa use group d:
- 150 A
- rated current ex e ii:
- 134 A
- rated current ul use group b:
- 150 A
- rated current ul use group c:
- 150 A
- rated voltage csa use group b:
- 600 V
- rated voltage csa use group d:
- 600 V
- rated voltage en ex e ii:
- 880 V
- rated voltage ul use group b:
- 600 V
- rated voltage ul use group c:
- 600 V
- ratings per:
- ATEX: PTB 98 ATEX 3134 U (Ex eb IIC Gb)
- safety information 1:
- Only suitable for DIN 35 x 15 rail
- solid conductor:
- 10 50 mm / 8 1/0 AWG
- stranded conductor:
- 10 70 mm / 8 2/0 AWG
- strip length:
- 30 mm / 1.18 inch
- weight:
- 158.650 g
- width:
- 20 mm / 0.787 inch
- wiring direction:
- Side-entry wiring
Description
POWER CAGE CLAMP feedthrough terminal block; suitable for Ex e II applications; DIN 35 x 15 rail mount; 2-conductor; 2/0 AWG stranded, 1/0 AWG solid; 20 mm wide; light gray
