Wago

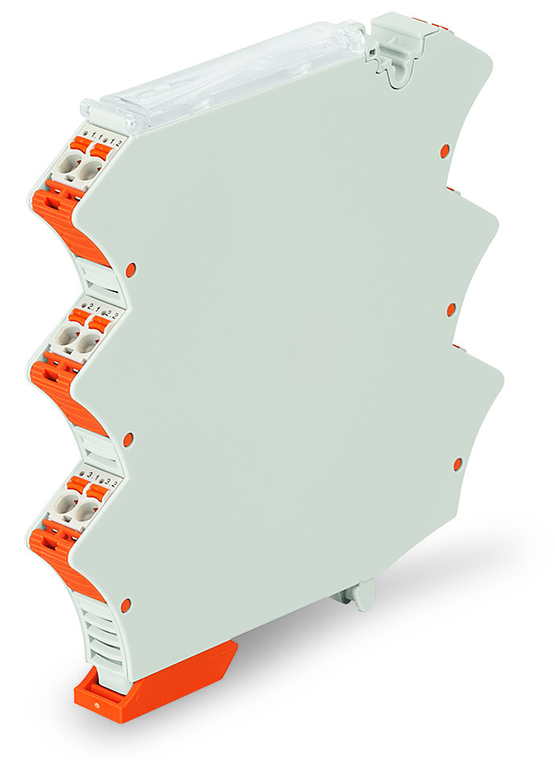

WAGO 2857-103 Pack of 10

SKU:

2857-103

UPC:

MPN:

2857-103

Condition:

New

clamping spring material:

Chrome nickel spring steel (CrNi)

connection technology:

Push-in CAGE CLAMP«

contact material:

Electrolytic copper (ECu)

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

107 mm / 4.213 inch

fine stranded conductor:

0.2 ƒƒ‡ª 2.5 mm / 24 ƒƒ‡ª 12 AWG

fine stranded conductor with insulated ferrule:

0.2 ƒƒ‡ª 1.5 mm / 24 ƒƒ‡ª 16 AWG

fine stranded conductor with uninsulated ferrule:

0.2 ƒƒ‡ª 2.5 mm / 24 ƒƒ‡ª 14 AWG

fire load:

1.407 MJ

flammability class per ul94:

V0

height:

112 mm / 4.41 inch

housing material:

PC

mounting type:

DIN-35 rail

nominal voltage ii 2:

630 V

nominal voltage iii 3:

250 V

number of jumper slots:

0

number of levels:

3

packaging type:

Box

pin spacing:

5 mm / 0.197 inch

pole no:

2

rated current:

16 A

rated current csa use group b:

15 A

rated current csa use group d:

0.416666666666667

rated current ul use group b:

15 A

rated surge voltage ii 2:

4 kV

rated surge voltage iii 2:

4 kV

rated surge voltage iii 3:

4 kV

rated voltage csa use group b:

300 V

rated voltage csa use group d:

300 V

rated voltage iii 2:

320 V

rated voltage ul use group b:

300 V

rated voltage ul use group d:

300 V

solid conductor:

0.2 ƒƒ‡ª 2.5 mm / 24 ƒƒ‡ª 12 AWG

strip length:

9 ƒƒ‡ª 10 mm / 0.35 ƒƒ‡ª 0.39 inch

surrounding air temperature operation:

-40 ƒƒ‡ª 70 C

surrounding air temperature storage:

-40 ƒƒ‡ª 85 C

weight:

66.014 g

width:

12.5 mm / 0.492 inch
