Wago

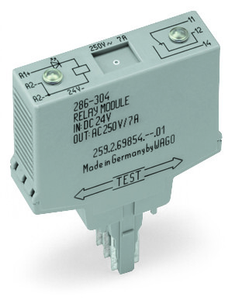

WAGO 286-312/004-000

SKU:

286-312/004-000

UPC:

MPN:

286-312/004-000

Condition:

New

bounce time typ:

2 ms

color:

Gray

contact material relay:

AgNi 0.15

country of origin sales organisation germany:

DE

depth:

52 mm / 2.047 inch

dielectric strength control load circuit ac 1 min:

2 kVrms

dielectric strength load load circuit ac 1 min:

1.5 kVrms

dielectric strength open contact ac 1 min:

1 kVrms

drop out time typ:

3 ms

fire load:

0.490 MJ

height from upper edge of din rail:

82.5 mm / 3.248 inch

input voltage range:

-30 +25 %

limiting continuous current:

0.208333333333333

mounting type:

Pluggable module for receptacle terminal blocks

nominal input current at un:

40 mA

nominal input voltage un:

DC 24 V

number of changeover switchover contacts:

2

operating altitude max:

2000 m

packaging type:

Box

pollution degree:

2

processing temperature:

-25 +50 C

protection type:

IP20

pull in time typ:

18 ms

rated surge voltage:

4 kV

rated voltage:

250 V

relative humidity:

5 85 % (no condensation permissible)

standards specifications:

EN 60664-1

status indicator:

Red LED

surrounding air temperature operation at un:

-25 70 C

surrounding air temperature storage:

-25 70 C

switching power resistive max:

AC 1750 VA

switching voltage max:

AC 250 V

weight:

39.800 g

width:

20 mm / 0.787 inch
