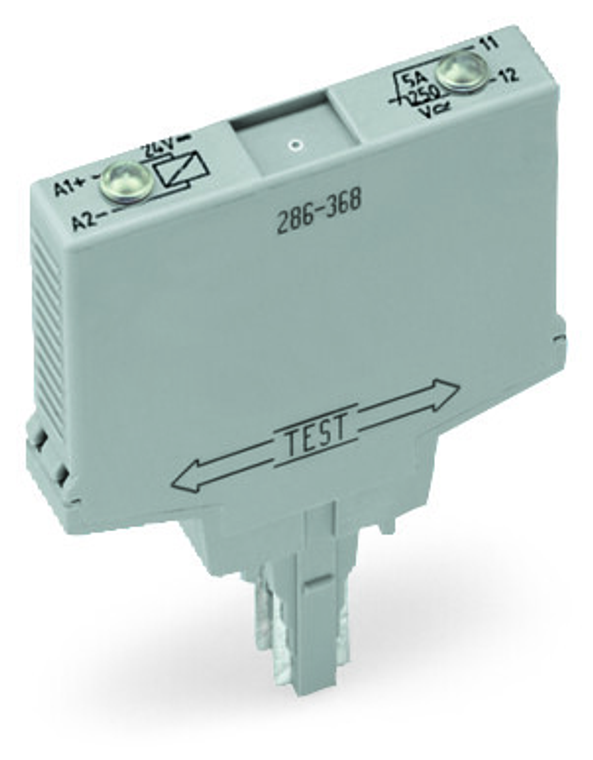

WAGO 286-368

(No reviews yet) Write a Review

Write a Review

WAGO 286-368

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

286-368

UPC:

MPN:

286-368

Condition:

New

bounce time typ:

3 ms

color:

Gray

contact material relay:

AgNi

country of origin sales organisation germany:

DE

depth:

52 mm / 2.047 inch

dielectric strength control load circuit ac 1 min:

4 kVrms

drop out time typ:

4 ms

fire load:

0.276 MJ

height from upper edge of din rail:

82.5 mm / 3.248 inch

input voltage range:

10 %

limiting continuous current:

0.208333333333333

mechanical life:

5 x 106 switching operations

mounting type:

Pluggable module for receptacle terminal blocks

nominal input current at un:

20.4 mA

nominal input voltage un:

DC 24 V

number of break switch off contacts:

1

operating altitude max:

2000 m

packaging type:

Box

pollution degree:

2

processing temperature:

-25 +50 C

protection type:

IP20

pull in time typ:

10 ms

rated surge voltage:

4 kV

rated voltage:

250 V

relative humidity:

5 85 % (no condensation permissible)

standards specifications:

EN 60664-1

status indicator:

Red LED

surrounding air temperature operation at un:

-25 40 C

surrounding air temperature storage:

-25 70 C

switching power resistive max:

AC 1250 VA

switching voltage max:

AC 250 V

weight:

19.075 g

width:

10 mm / 0.394 inch
