Latching relay with 1 changeover contact (1u).

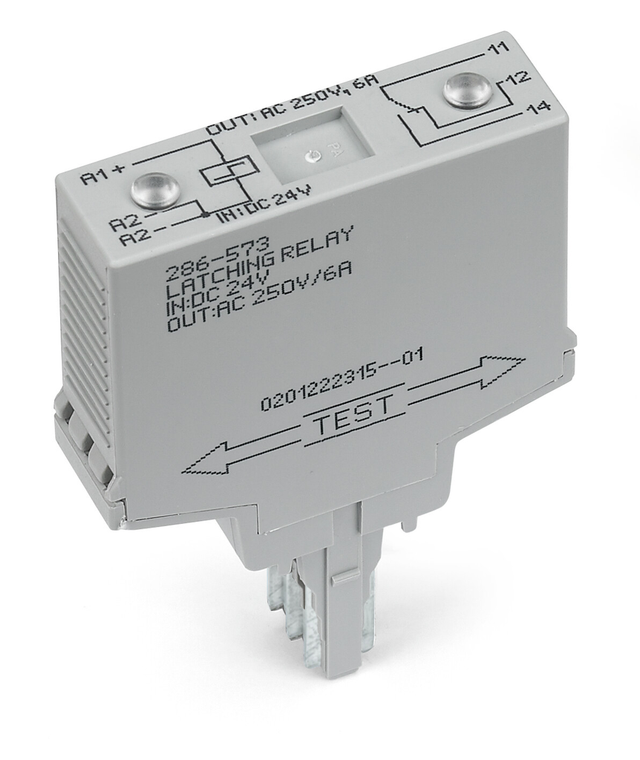

The WAGO 286 series replacement plug-in relay features a red LED and is a bistable/latching, single-pole (1P) relay with a control voltage range of 20.4-26.4Vdc (nominal 24Vdc). It has a Single Pole Double Throw (SPDT) contact configuration, an electromechanical design, and a rated continuous current of 6A. The relay includes plug-in connections and is designed for plug-in mounting with an IP20 protection rating. The contacts are made of Silver-Tin (AgSnO).
- contact material relay:
- AgSnO2
- country of origin sales organisation germany:
- DE
- depth:
- 52 mm / 2.047 inch
- dielectric strength control load circuit ac 1 min:
- 4 kVrms
- dielectric strength open contact ac 1 min:
- 1.5 kVrms
- fire load:
- 0.324 MJ
- height from upper edge of din rail:
- 82.5 mm / 3.248 inch
- input voltage range:
- -15 +10 %
- inrush current resistive max:
- (AC) 50 A / 0.02 s
- limiting continuous current:
- 0.25
- mechanical life:
- 10 x 106 switching operations
- mounting type:
- Pluggable module for receptacle terminal blocks
- nominal input current at un:
- 40 mA
- nominal input voltage un:
- DC 24 V
- number of changeover switchover contacts:
- 1
- operating altitude max:
- 2000 m
- packaging type:
- Box
- pollution degree:
- 2
- processing temperature:
- -25 +50 C
- protection type:
- IP20
- rated surge voltage:
- 4 kV
- rated voltage:
- 250 V
- recommended minimum load:
- 10 V / 10 mA
- relative humidity:
- 5 95 % (no condensation permissible)
- standards specifications:
- EN 60664-1
- surrounding air temperature operation at un:
- -25 50 C
- surrounding air temperature storage:
- -40 70 C
- switching power resistive max:
- AC 1500 VA
- switching voltage max:
- AC 250 V
- weight:
- 29.005 g
- width:
- 15 mm / 0.591 inch
