Wago

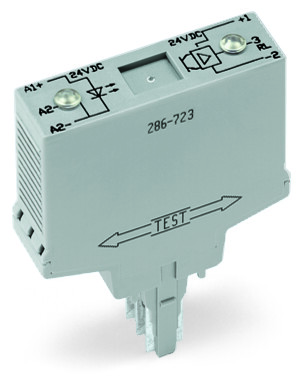

WAGO 286-723

SKU:

286-723

UPC:

MPN:

286-723

Condition:

New

circuit type:

3-wire connection || High-side switching

color:

Gray

country of origin sales organisation germany:

DE

depth:

52 mm / 2.047 inch

dielectric strength control load circuit ac 1 min:

2.5 kVrms

fire load:

0.324 MJ

height from upper edge of din rail:

82.5 mm / 3.25 inch

input current range:

7.6 15 mA

input voltage range high level:

DC 15 30 V

leakage current at rated voltage:

¤ 2 A

limiting continuous current:

0.166666666666667

mounting type:

Pluggable module for receptacle terminal blocks

nominal input current at un:

14 mA

nominal input voltage un:

DC 24 V

nominal output voltage:

DC 24 V

operating altitude max:

2000 m

output closed circuit current without load max:

12 mA

output voltage range:

DC 20 30 V

packaging type:

Box

pollution degree:

2

processing temperature:

-25 +50 C

protection type:

IP20

relative humidity:

5 95 % (no condensation permissible)

standards specifications:

EN 60664-1

status indicator:

Red LED

surrounding air temperature operation at un:

-25 40 C

surrounding air temperature storage:

-25 40 C

switching frequency:

¤ 2.5 kHz

turn off time:

¤ 25 s

turn on time:

¤ 15 s

voltage drop at output max:

¤ DC 1.2 V

weight:

26.800 g

width:

15 mm / 0.591 inch
