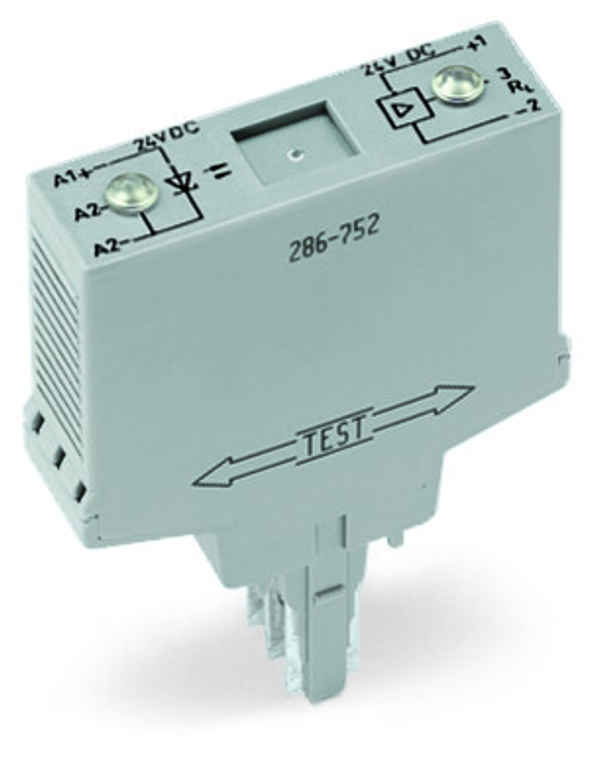

WAGO 286-752 Optocoupler Module, 24 VDC Input, 20-30 VDC Output, 0.5 A Continuous Current, 3-Wire Connection, 25 kHz Frequency, Red Status Indicator, 15 mm Width, Gray
Wago
$76.54
| Description | Optocoupler module; Input DC 24 V; "Output DC 5 V/500 mA; positive switching | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Remarks | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Item properties | Miscellaneous
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
The WAGO 286 series replacement plug-in solid-state relay (SSR) module features a red LED indicator and a 3-wire high-side switching connection. It is a single-pole, single-phase device designed for control voltages between 12-30Vdc (24Vdc nominal) and outputs rated between 20Vdc-30Vdc (24Vdc nominal) with a continuous rated current of 0.5A. The module includes plug-in connections and mounting, has an IP20 protection rating, and is equivalent to model 286752.
- circuit type:
- 3-wire connection || High-side switching
- color:
- Gray
- country of origin sales organisation germany:
- DE
- depth:
- 52 mm / 2.047 inch
- dielectric strength control load circuit ac 1 min:
- 3 kVrms
- fire load:
- 0.323 MJ
- height from upper edge of din rail:
- 82.5 mm / 3.25 inch
- input current range:
- 5 20 mA
- input voltage range high level:
- DC 12 30 V
- insulation type adjacent devices:
- Reinforced insulation (safe isolation)
- insulation type control load circuit:
- Reinforced insulation (safe isolation)
- leakage current at rated voltage:
- ¤ 2 A
- limiting continuous current:
- 0.5 A
- mounting type:
- Pluggable module for receptacle terminal blocks
- nominal input current at un:
- 15 mA
- nominal input voltage un:
- DC 24 V
- nominal output voltage:
- DC 24 V
- operating altitude max:
- 2000 m
- output closed circuit current without load max:
- 12 mA
- output voltage range:
- DC 20 30 V
- overvoltage category:
- II
- packaging type:
- Box
- pollution degree:
- 2
- processing temperature:
- -25 +50 C
- protection type:
- IP20
- rated voltage:
- 300 V
- relative humidity:
- 5 95 % (no condensation permissible)
- standards specifications:
- EN 60664-1
- status indicator:
- Red LED
- surrounding air temperature operation at un:
- -25 40 C
- surrounding air temperature storage:
- -25 40 C
- switching frequency:
- ¤ 25 kHz
- turn off time:
- ¤ 15 s
- turn on time:
- ¤ 7 s
- voltage drop at output max:
- ¤ DC 1.2 V
- weight:
- 17.886 g
- width:
- 15 mm / 0.591 inch
