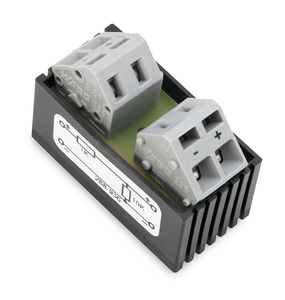

WAGO 288-304 relay module, 24 VDC, SPDT, 6 A, DIN rail mount
Wago
$67.81
Relay module; Nominal input voltage: 24 VDC; 1 changeover contact; Limiting continuous current: 6 A; Module width: 21 mm; 2,50 mm²; gray.
The WAGO 288 series plug-in relay assembly features a single-pole, single-pole double throw (SPDT) contact with a control voltage range of 21.6-26.4Vdc (24Vdc nominal). It has an electromechanical design, a rated continuous current of 6A, and utilizes CAGE CLAMP connections. The relay is designed for DIN-35 rail mounting with a width of 20.5mm and has Silver-Nickel (AgNi 90/10) contacts. This relay is equivalent to the model 288304.
- bounce time typ:
- 2 ms
- Color:
- Gray
- connection technology:
- CAGE CLAMP
- contact material relay:
- AgNi 90/10
- country of origin sales organisation germany:
- CN
- depth from upper edge of din rail:
- 48 mm / 1.89 inch
- dielectric strength control load circuit ac 1 min:
- 4 kVrms
- dielectric strength open contact ac 1 min:
- 1 kVrms
- drop out time typ:
- 3 ms
- electrical life no resistive load 23 c:
- 100 x 103 switching operations
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fire load:
- 0.755 MJ
- height:
- 85 mm / 3.346 inch
- input voltage range:
- 10 %
- inrush current resistive max:
- (AC) 16 A / 4 s
- limiting continuous current:
- 0.25
- mechanical life:
- 30 x 106 switching operations
- mounting type:
- DIN-35 rail
- nominal input current at un:
- 21.8 mA
- nominal input voltage un:
- DC 24 V
- note:
- Reinforced insulation between control and load side per EN 61010-2-201
- number of changeover switchover contacts:
- 1
- overvoltage category:
- II
- packaging type:
- Box
- pollution degree:
- 2
- processing temperature:
- -25 +50 C
- pull in time typ:
- 9 ms
- rated voltage:
- 300 V
- relative humidity:
- 5 75 % (non-condensing)
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- standards specifications:
- EN 61010-2-201
- strip length:
- 5 6 mm / 0.2 0.24 inch
- surrounding air temperature operation at un:
- -25 40 C
- surrounding air temperature storage:
- -40 80 C
- switching power resistive max:
- AC 1500 VA
- switching voltage max:
- AC 250 V
- weight:
- 45.000 g
- width:
- 20.5 mm / 0.807 inch
