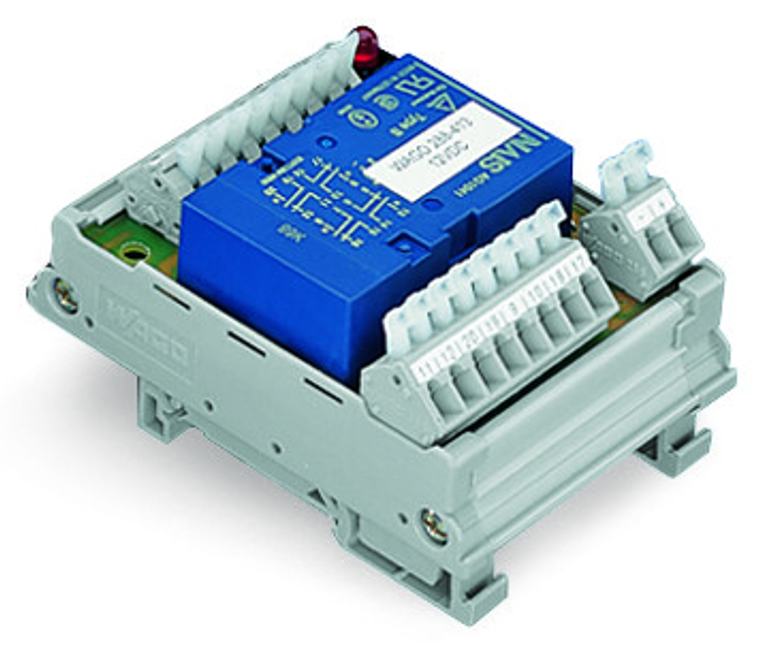

dielectric strength control load circuit ac 1 min:
2.5 kVrms
dielectric strength load load circuit ac 1 min:
2.5 kVrms
dielectric strength open contact ac 1 min:
1.3 kVrms
drop out time typ:
21 ms
electrical life no resistive load 23 c:
100 x 103 switching operations
fine stranded conductor:
0.08 2.5 mm / 28 12 AWG
fire load:
0.855 MJ
height:
85 mm / 3.346 inch
input voltage range:
-15 +20 %
insulation type adjacent devices:
Reinforced insulation (safe isolation)
insulation type control load circuit:
Basic insulation
insulation type load load circuit:
Basic insulation
insulation type open contact:
Functional insulation
limiting continuous current:
0.25
max temperature rise of connection cable:
20 K
mechanical force guided operation:
Type B
mechanical life:
10 x 106 switching operations
mounting type:
DIN-35 rail
nominal input current at un:
14 mA
nominal input voltage un:
AC/DC 230 V
note:
If required, a ventilation hole can be made in the cover, reducing the protection type from IP67 to IP30.If an outer contact (20) should weld, then the forced operated inner contact (12) driven by the actuator remains open. The rotating armature rema
note on insulation parameters:
Per EN 61010-1.
number of break switch off contacts:
4
number of make switch on contacts:
4
operating altitude max:
2000 m
overvoltage category:
II
packaging type:
Box
pollution degree:
2
processing temperature:
-25 +50 C
pull in time typ:
18 ms
rated voltage:
250 V
recommended minimum load:
10 V / 10 mA
relative humidity:
5 85 %
solid conductor:
0.08 2.5 mm / 28 12 AWG
standards specifications:
EN 60664-1 || EN 50205 || EN 61810-1 || ESTI (SEV): 09.1133 || UL 508: E120782 || TV: 968/EZ 116.02/09
